Baldor CFSSP5M3615T-E-G

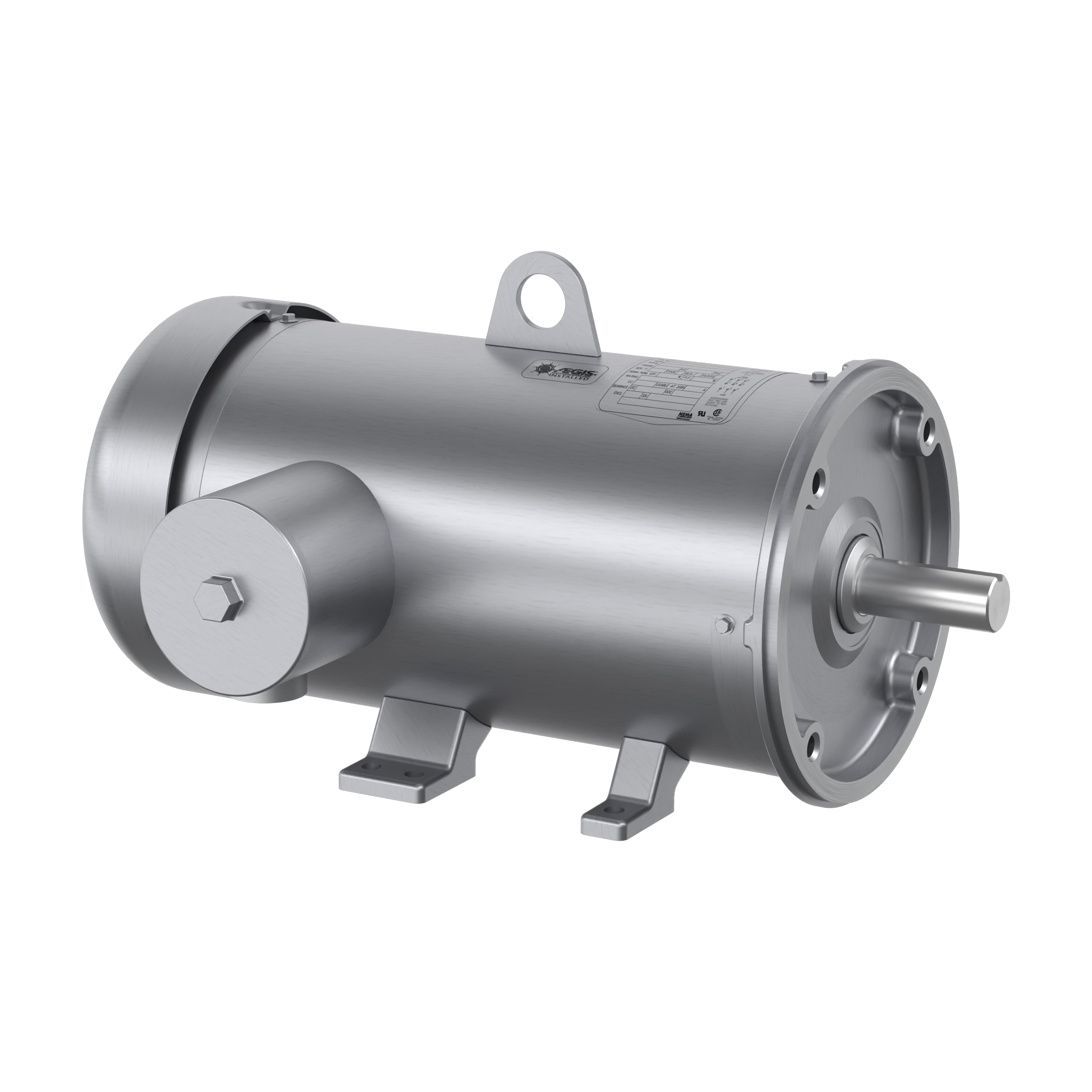

* Actual Product May Differ From Image
CFSSP5M3615T-E-G
Part Number: CFSSP5M3615T-E-G
Model/Spec Number: 781568598542
Manufacturer: Baldor
Frame Size:184TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$4,592.80 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days
586.469.0710
Typically Ships: 1-2 Days
Ships via UPS
Documents
Product Specifications
| Enclosure: | TEFC | Frame Size: | 184TC | Frame Material: | Stainless Steel |
| Poles: | 4 | Insulation Class: | H | Shaft Rotation: | Reversible |
| Base: | Rigid | Horsepower: | 5 Hp | Speed RPM: | 1800 |
| Max Speed: | 4000 RPM | Base Speed: | 1800 RPM | Voltage: | 230/460V |
| Full Load Amps: | 10.6/5.3 | Service Factor: | 1.15 | Motor Weight: | 96.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 17.4 in | Phase: | Three Phase |
| Efficiency: | 91.7 % | XP Temp Code: | Without | Bearing DE: | 6206 |
| Bearing ODE: | 6305 | Ambient Temp: | 40 °C | Inverter Duty: | 03 |
| Shaft Grounding: | Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 5759.00 |
