Repairs and Service For

Adjusto Spede Motor Repair Services

Servo Motor Shipping
Ship Your Item To A&C Electric
Servo Motor Cleaning
A&C Electric Certified Technicians Dismantle Your Product
Servo Motor Repair Quote
A&C Electric Sends you a Quote for Approval of Repair
Servo Motor Repair Return
Motor is rebuilt and shipped back to you ASAP

Dynamatic Adjusto-Spede Repair Capabilities

We have documented 10,000 repair reports in our Database spanning across 50 different manufacturers
We repair A.C. Motors, D.C. Motors, Servo Motors, Press Drives, Gearboxes, and Spindles
Capable of 24-hour repairs in many cases
We have thousands of spare and rebuilt motors in our inventory for parts or exchange motors

Dynamatic Adjusto-Spede Repair Procedures

  1. Data

    Motor nameplate data is recorded

  2. Inspection

    A visual inspection of any damage to the motor.

    We check for
    • Damaged Leads/Terminals
    • Worn output shaft/keyways
    • Cracks in end bells or covers
  3. Job Ticket

    We complete to full write up off all motor data

    Including
    • All winding tests (Resistance, Meg Ω, Continuity) on the stator and clutch coil
    • All bearing sizes
    • All seal sizes
    • Brake torque tests (Record Torque, winding resistance)
    • Feedback Tests (Tachometer/Encoder)
  4. Motor Disassembly

    • Bearing and seal sizes are recorded (motor and clutch)
    • Bearing fits are measured on shaft and End bell
    • Brake torque is measured as well as resistance and Meg Ω
    • More winding tests are performed (Surge and HiPOT tests) on the motor and clutch coil
    • Stator is then washed and baked in oven (or burned out if required)
    • Magnets are inspected for cracks or if loose on shaft
    • Clutch housing is resleeved if required
  5. Assembly

    • New bearings are installed
    • New seals are installed
    • If required, new windings are impregnated
    • New brushes are installed
    • Brakes are rebuilt or replaced depending on manufacturer design.
  6. Rotor Balancing and Testing

    • Rotor is run through a full vibration diagnostic
  7. Run Testing

    • Every Motor is Run for a minimum of 1 hour using one of our drives.
    • We use Siemens S110, S120, IndraDrive, AB Kinetix 300, Yaskawa 7, and AMC drives
  8. Service Report

    • A Final 3-page Service Report is filled out
    • Pinout diagram for power and feedback is provided
    • Brake torque is recorded a final time for our Service Reports
    • A photo of nameplate and motor is attached
    • A motor tag is installed on motor with QR code linking Service Report and Job Histories
    • If requested, a YouTube link is attached to the service report of motor

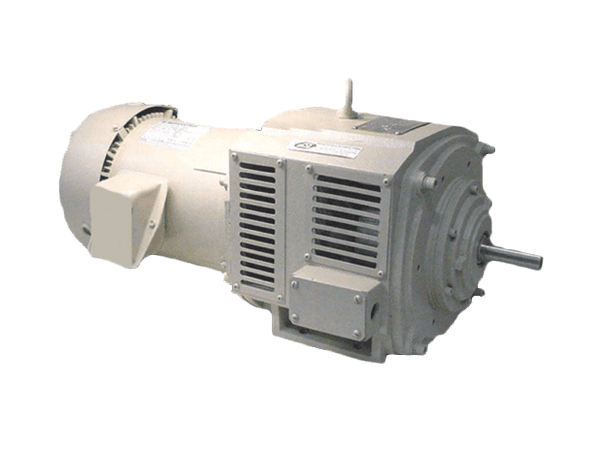

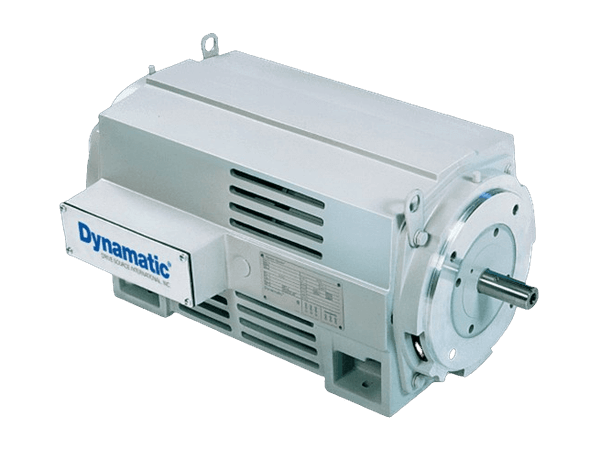

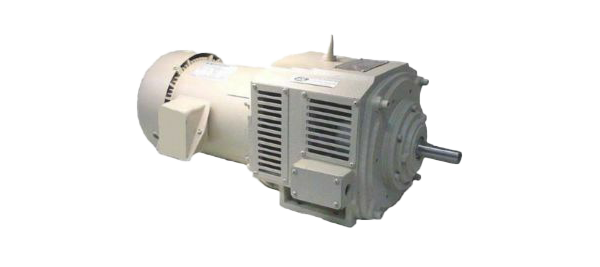

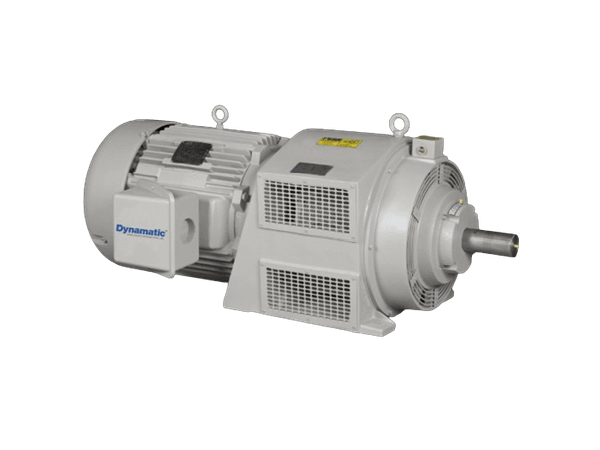

Dynamatic Adjusto Spede MotorsA&C Electric is a motor repair specialist when it comes to DSI Dynamatic, Eaton, and Louis Allis eddy current drives. We are your number one source for Ajusto-Spede repair and replacement in Michigan.

Ajusto Spede is a technology that requires additional expertise. Far from your regular electric motor, Ajusto Spede allows for 34 to 1 speed range at 250 percent of rated torque, which is great for starting on an overload. We address and fix the fault in your motor in HALF the lead time and a FRACTION of the cost of buying new equipment.

Our capabilities ensure that your Ajusto-Spede motor gets to you in the lowest time possible with the highest quality.

Contact Adjusto Spede motor repair specialists for a free quote.
