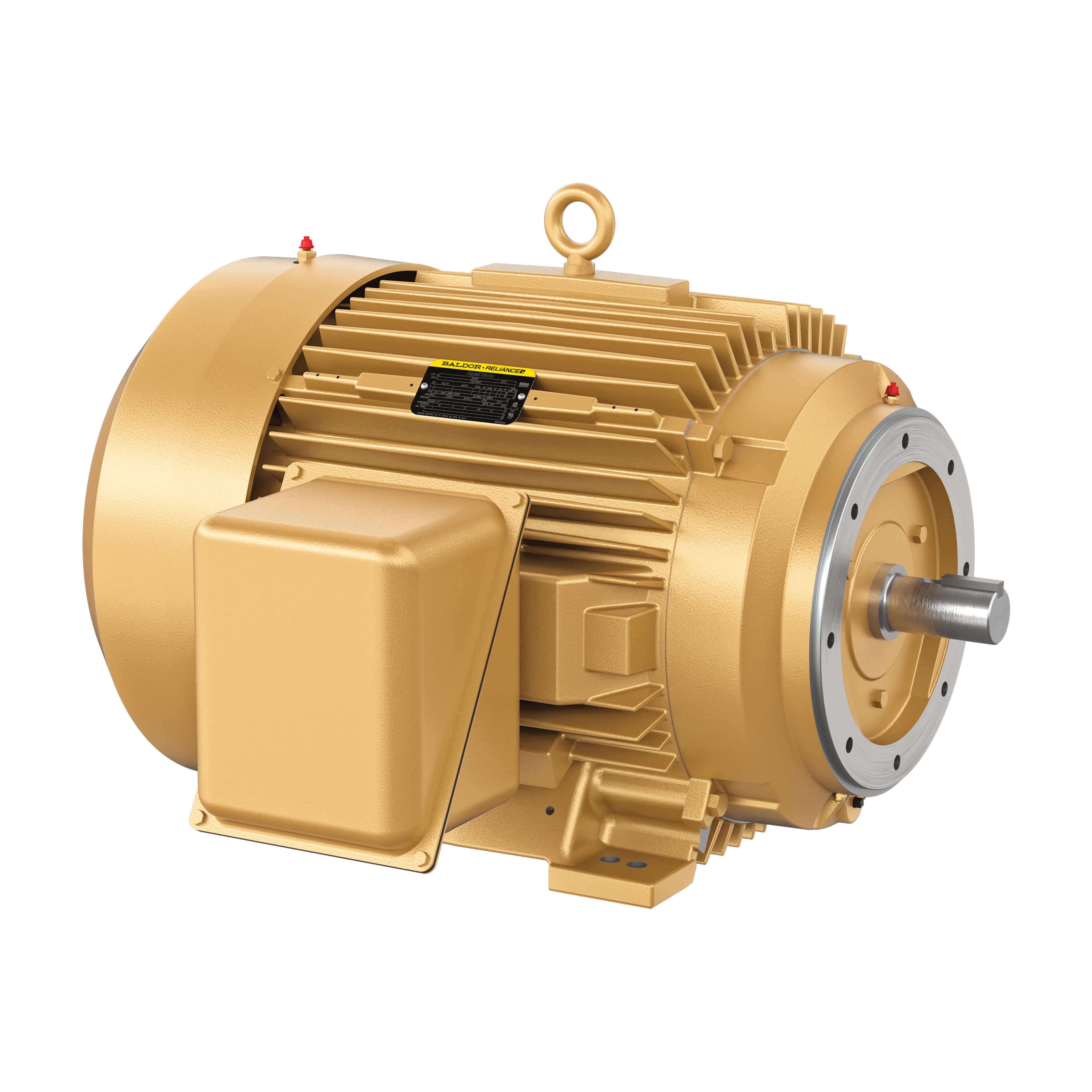

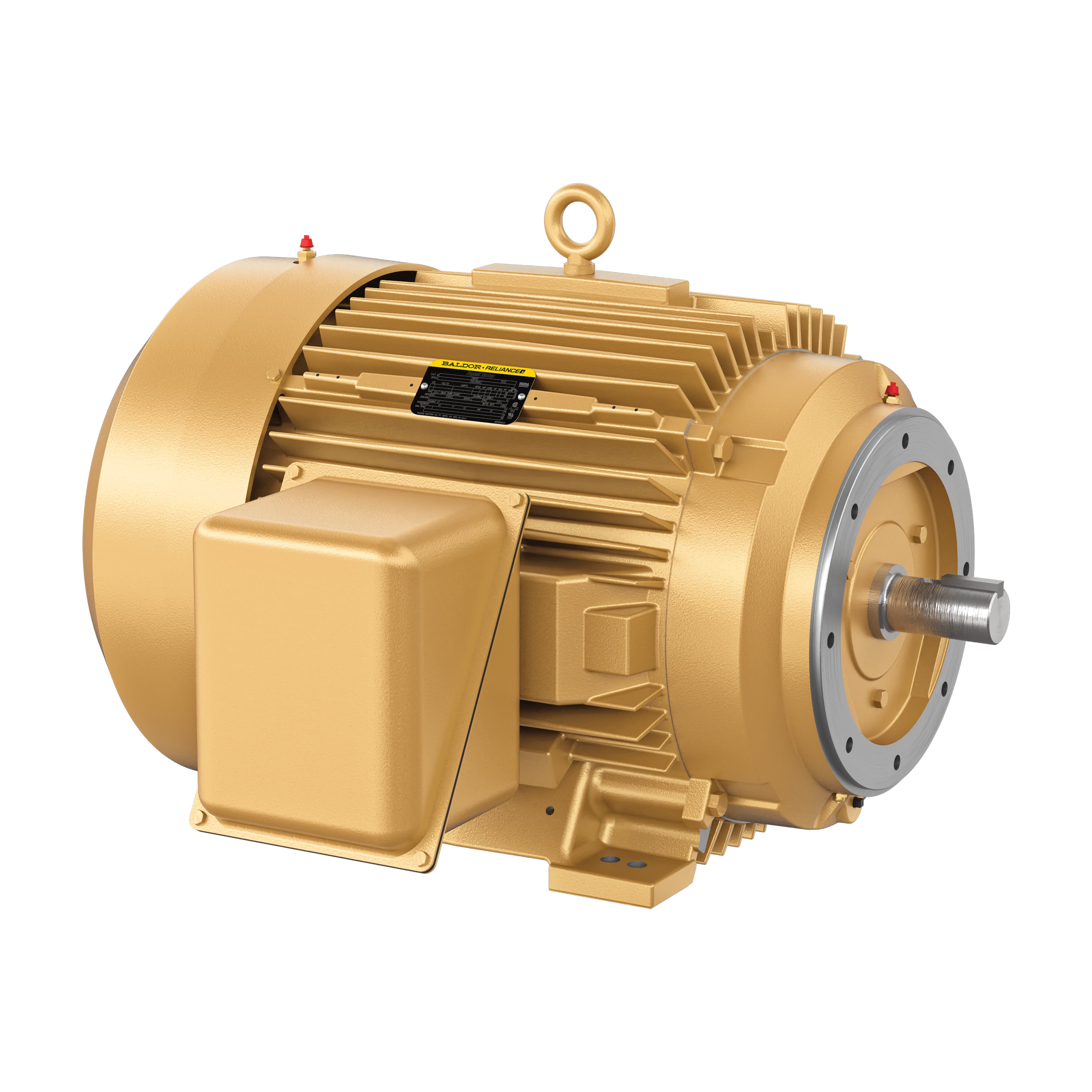

Baldor CECP4313T
* Actual Product May Differ From Image
CECP4313T
Part Number: CECP4313T
Model/Spec Number: 781568844182
Manufacturer: Baldor
HP: 75
RPM: 3555
Frame:Iron
Frame Size:365TSC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Regreasable bearings all frames, 304 Stainless steel nameplates, Inverter Duty nameplate, Division 2/Class 1 Groups A-B-C-D markings on nameplate, Insulated NDE bearing on 5000 frames, Class F insulated motor with 1.15 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$13,971.74 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Power Generation, Metal & Foundries, Chemical, Oil, Gas, Food Processing, Pulp, Paper, Forest production, Wastewater treatment, Cement | ||||
| Enclosure: | TEFC | Frame Size: | 365TSC | Agency Approvals: | CCSAUSEEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 75 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3555 | Max Speed: | 4500 RPM |
| Voltage: | 230/460V | Full Load Amps: | 161/80.7 | Service Factor: | 1.15 |
| Motor Weight: | 886.0 lbs | Duty Cycle: | Continuous | Overall Length: | 31.31 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 94.5 % |
| XP Temp Code: | T3 | End Plate: | C-FACE | Bearing DE: | 6313 |
| Bearing ODE: | 6313 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.8750 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 19783.00 | ||
