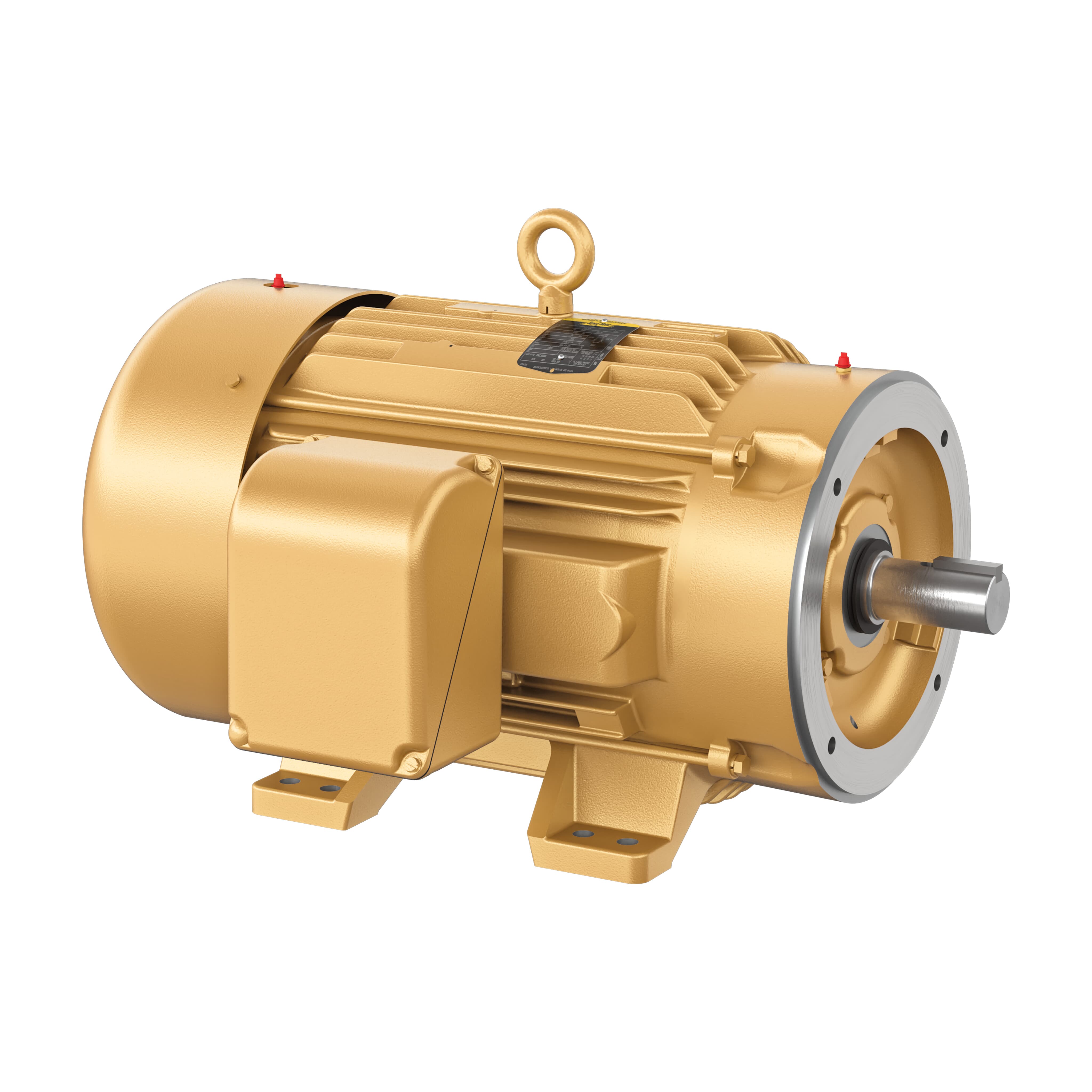

Baldor CEM4310T
* Actual Product May Differ From Image
CEM4310T
Part Number: CEM4310T
Model/Spec Number: 781568603642
Manufacturer: Baldor
HP: 60
RPM: 3560
Frame:Iron
Frame Size:364TSC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
60 Hz designs with 50 Hz information on 2,4,6 pole 1-125 HP ratings, Suitable for inverter use per NEMA MG1 Part 31.4.4.2 unless 38 is indicated, Simple F1 to F2 conversion on cast iron frames, Designed for longevity with a 3 year warranty on NEMA premium effecient motors
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$11,098.01 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Other general purpose applications, Fans, Conveyors, Blowers, Compressors, Pumps, Industrial Machines | ||||
| Enclosure: | TEFC | Frame Size: | 364TSC | Agency Approvals: | CCSAUSEEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 60 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3560 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 135/67.3 | Service Factor: | 1.15 |
| Motor Weight: | 830.0 lbs | Duty Cycle: | Continuous | Overall Length: | 31.31 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 94.5 % |
| XP Temp Code: | Without | End Plate: | C-FACE | Bearing DE: | 6313 |
| Bearing ODE: | 6313 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.8750 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 16472.00 | ||
