Baldor CECP4316T

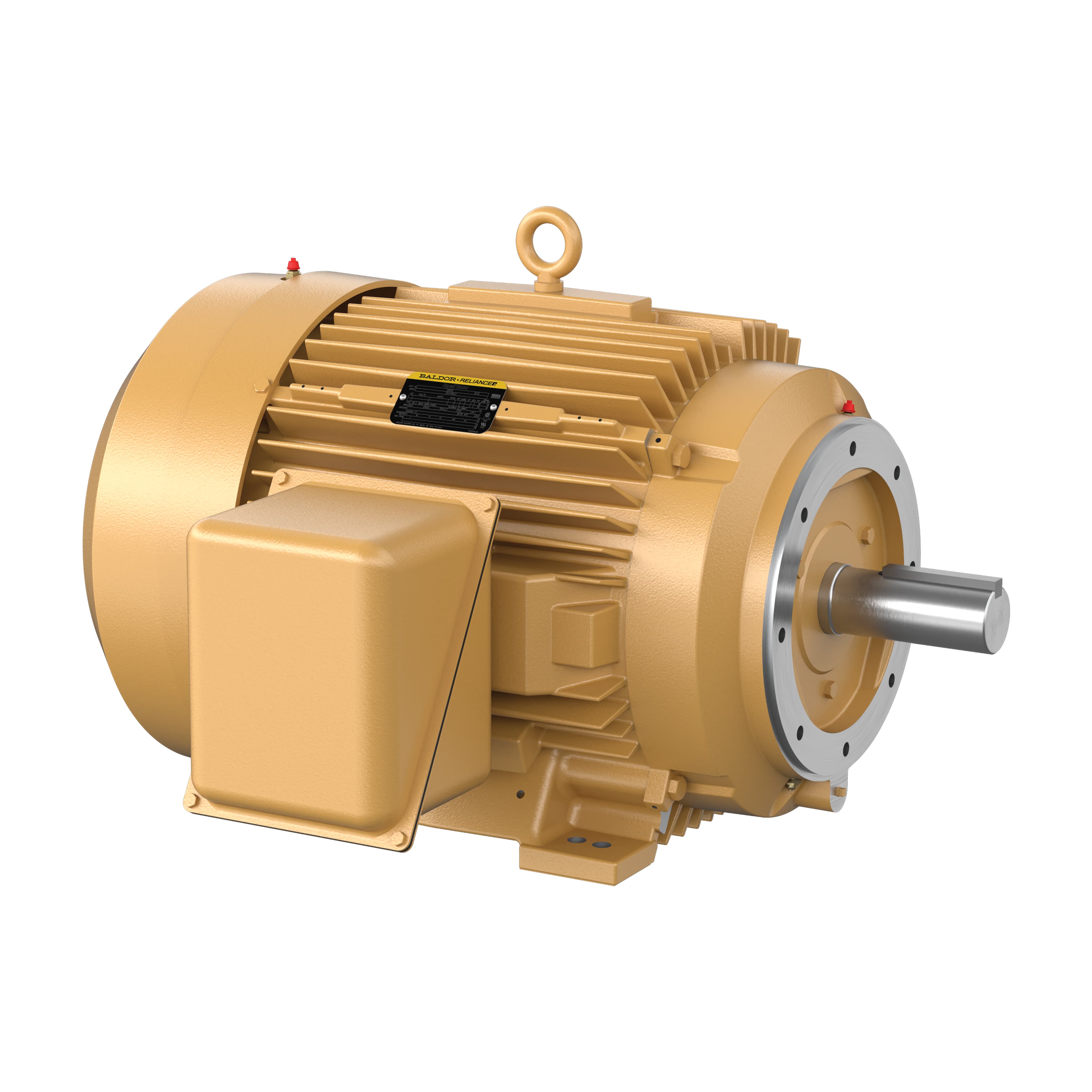

* Actual Product May Differ From Image
CECP4316T
Part Number: CECP4316T
Model/Spec Number: 781568844205
Manufacturer: Baldor
HP: 75
RPM: 1780
Frame:Iron
Frame Size:365TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Regreasable bearings all frames, 304 Stainless steel nameplates, Inverter Duty nameplate, Division 2/Class 1 Groups A-B-C-D markings on nameplate, Insulated NDE bearing on 5000 frames, Class F insulated motor with 1.15 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$13,884.88 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Power Generation, Metal & Foundries, Chemical, Oil, Gas, Food Processing, Pulp, Paper, Forest production, Wastewater treatment, Cement | ||||
| Enclosure: | TEFC | Frame Size: | 365TC | Agency Approvals: | CCSAUSEEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 75 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1780 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 172/86 | Service Factor: | 1.15 |
| Motor Weight: | 905.0 lbs | Duty Cycle: | Continuous | Overall Length: | 33.44 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 95.4 % |
| XP Temp Code: | T3 | End Plate: | C-FACE | Bearing DE: | 6313 |
| Bearing ODE: | 6313 | Ambient Temp: | 40 °C | Shaft Diameter: | 2.3750 in |
| Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding | IP Rating: | IP55 |
| Standard: | NEMA | List: | 19660.00 | ||
