Repairs and Service For

CEM3774T

CEM3774T
ABB Baldor-Reliance CEM3774T for Sale
ABB Baldor-Reliance CEM3774T for Sale

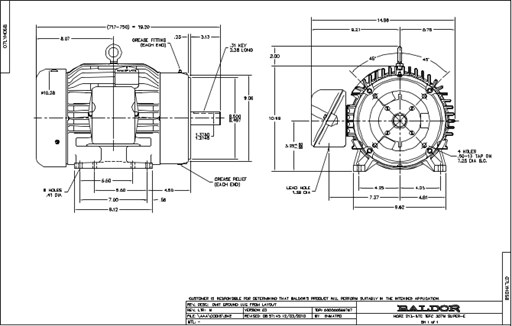

Baldor-Reliance CEM3774T Motor Dimension Sheet

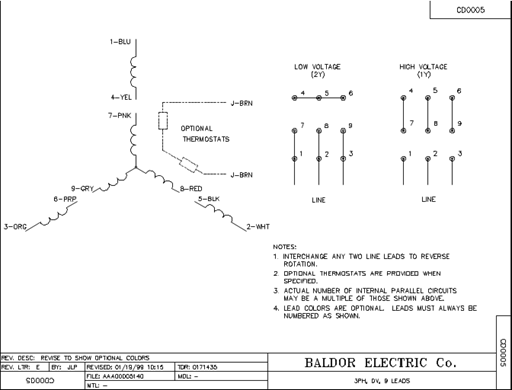

Baldor-Reliance CEM3774T Motor Connection Diagram

* Actual Product May Differ From Image

Model Number: CEM3774T
Brand: Baldor-Reliance
Frame: 215TC

CEM3774T Product Information Packet

Enclosure: TEFC

Frequency: 60 Hz

Output: 10 HP

Speed: 1800 RPM

Phase: 3

Voltage: 460 V/230 V

Current: 24.6 A @ 230 V

Ambient Temp: 40 C

Efficiency: 91.7%

Motor Type: 0748M

Mount Arrangement: F1

Length: 19.20 IN

Shaft Diameter: 1.375 IN

Pulley Face Code: C-Face

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5 48 70 79 83 85 85 84
Efficiency 0 8938 92.6 92.6 91.7 90.4 88.8 90.7
Speed (RPM) 1799 1791 1783 1774 1763 1752 1739 1753
Line Amps 4.67 5.44 7.24 9.60 12.30 15.30 18.60 14.10

Features

  • General purpose motor for use in wide range of applications
  • Single speed code
  • NEMA Premium efficiency with 3-year warranty
  • Cast iron frame
Typically ships in: 1 day(s)
Weight: 195 lbs
Want yours repaired? Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
$1,308.13 /each
Select Quantity:

Unit of measure: each

Returns: See policies

Payment methods:
