CEM3711T
CEM3711T

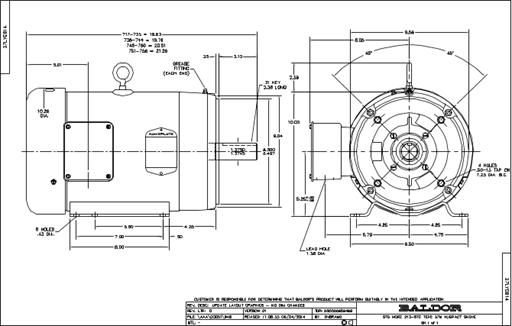

* Actual Product May Differ From Image
Model Number:
CEM3711T
Brand:
Baldor-Reliance
Frame:
215TC
CEM3711T Product Information Packet
Enclosure: TEFC
Frequency: 60 Hz
Output: 10 HP
Speed: 3490 RPM
Phase: 3
Voltage: 460 V/230 V
Current: 23.2 A @ 230 V
Ambient Temp: 40 C
Efficiency: 90.2%
Motor Type: 3730M
Mount Arrangement: F1
Length: 18.63 IN
Shaft Diameter: 1.375 IN
Pulley Face Code: C-Face
Load Characteristics
| Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
| Power Factor | 7 | 57 | 78 | 85 | 88 | 90 | 89 | 88 |
| Efficiency | 0 | 88.6 | 91.7 | 91.6 | 90.6 | 89.1 | 87.3 | 90.0 |
| Speed (RPM) | 3597 | 3573 | 3548 | 3520 | 3489 | 3455 | 3417 | 3464 |
| Line Amps | 3.66 | 4.56 | 6.49 | 8.90 | 11.60 | 14.60 | 17.90 | 13.50 |
Features
- General purpose motor for use in wide range of applications
- Single speed code
- NEMA Premium efficiency with 3-year warranty
- Cast iron frame
Typically ships in:
1 day(s)
Weight:
121 lbs
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
