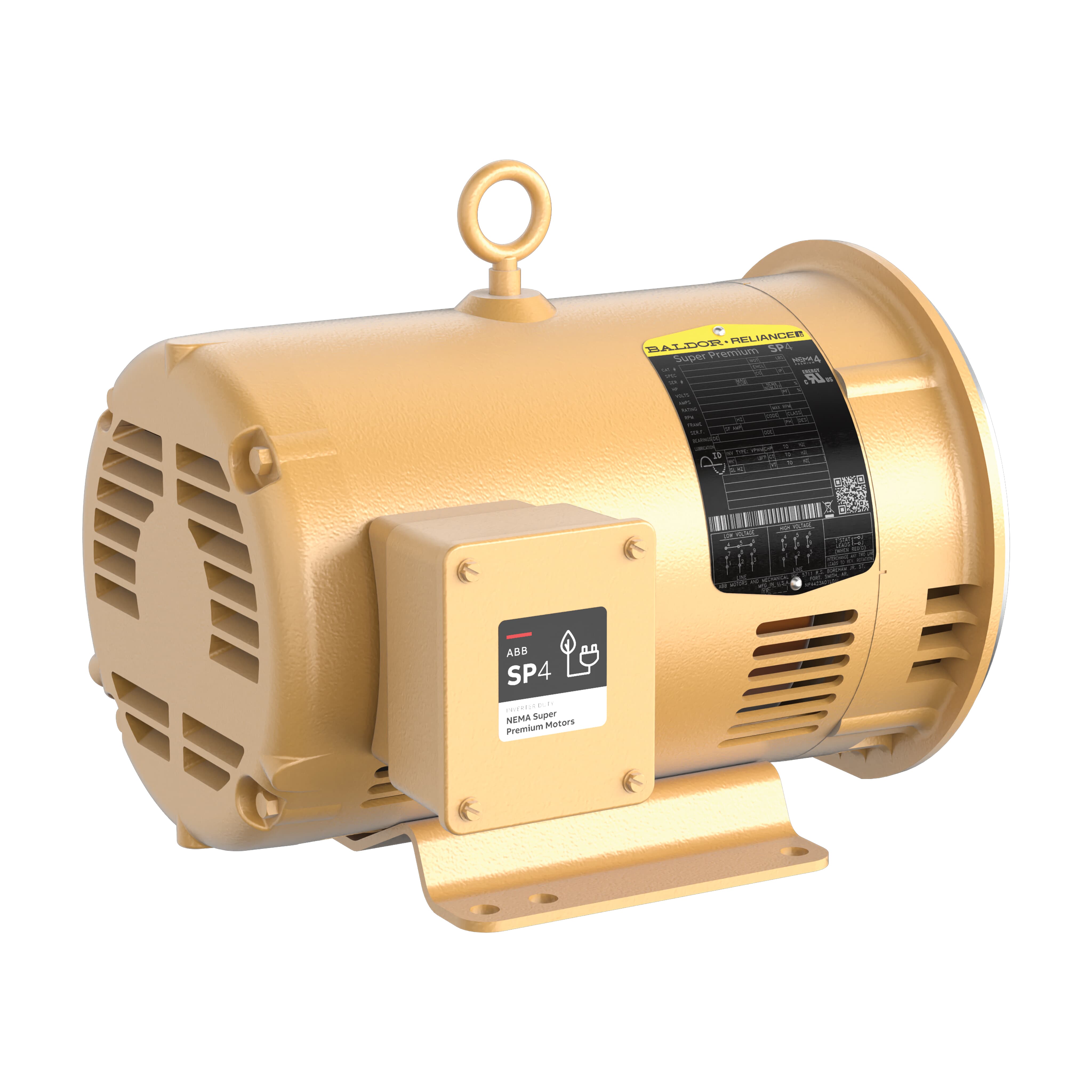

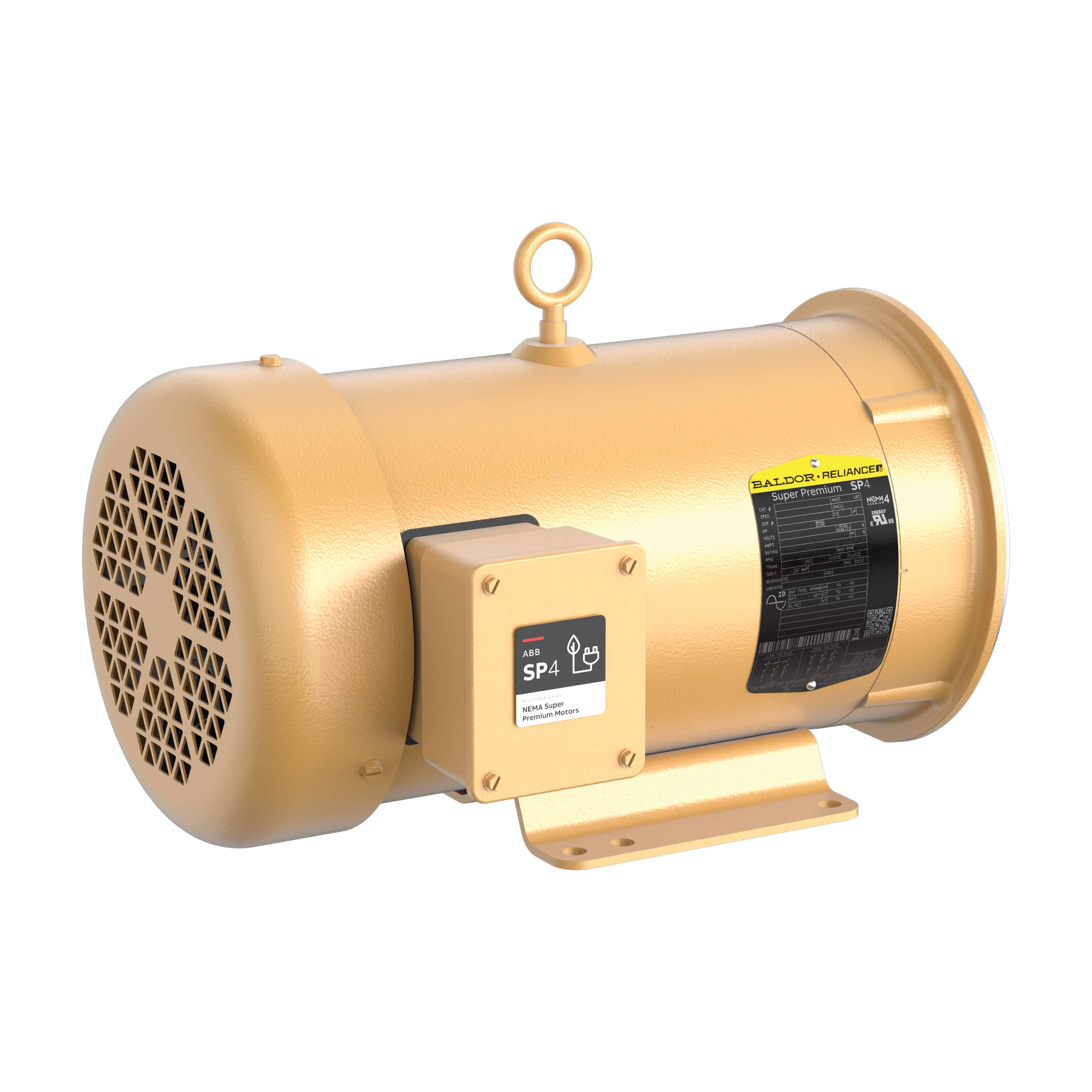

Baldor CSPM4407T-4
* Actual Product May Differ From Image
CSPM4407T-4
Part Number: CSPM4407T-4
Model/Spec Number: 781568599938
Manufacturer: Baldor
HP: 200
RPM: 1790
Frame:Iron
Frame Size:449TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Suitable for inverter use per NEMA MG1 part 31.4.4.2, 60 Hz Designs, Designed for longevity with a 4 year warranty on Super Premium efficient SP4 motors, Optimized airflow design providing higher horsepower in a smaller package, Cooler operation for longer lifespan
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$27,903.53 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other general purpose applications | ||||
| Enclosure: | TEFC | Frame Size: | 449TC | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR;WEEE |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 200 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1790 | Voltage: | 460V |
| Full Load Amps: | 224 | Service Factor: | 1.15 | Motor Weight: | 2545.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 53.47 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 96.5 % | XP Temp Code: | Without |
| Bearing DE: | 90BC03J30X | Bearing ODE: | 90BC03J30X | Ambient Temp: | 40 °C |
| Shaft Diameter: | 3.3750 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | IP55 | Standard: | NEMA | List: | 45464.00 |
