Baldor IDM4103T
* Actual Product May Differ From Image
IDM4103T
Part Number: IDM4103T
Model/Spec Number: 781568144558
Manufacturer: Baldor
HP: 25
RPM: 1775
Frame:Iron
Frame Size:286T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
TENV, TEFC, and TEBC 1000:1 Constant Torque, Provisions for encoder mounting , 3 Thermostats, Standard NEMA frame sizes
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$5,760.67 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

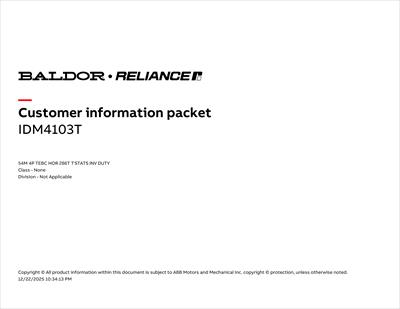

Documents
Product Specifications
| Applications: | Centrifugal Pumps, Fans, Extruders, Conveyors, Cranes, Hoists, Winders, Web processing, Process Control, Test Stands | ||||
| Enclosure: | TEBC | Frame Size: | 286T | Agency Approvals: | CSA;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 25 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1775 | Max Speed: | 2700 RPM |
| Base Speed: | 1800 RPM | Voltage: | 230/460V | Full Load Amps: | 62/31 |
| Service Factor: | 1.00 | Motor Weight: | 417.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 34.47 in | Frequency: | 60 Hz | Phase: | Three Phase |
| Efficiency: | 93.6 % | XP Temp Code: | Without | End Plate: | STANDARD |
| Bearing DE: | 6311 | Bearing ODE: | 6309 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.8750 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 7518.00 |
