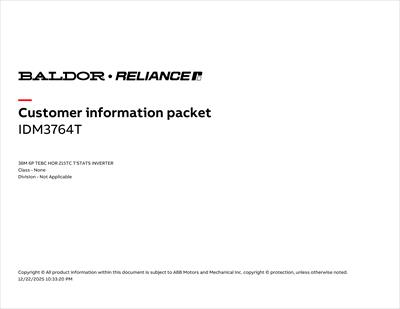

Baldor IDM3764T
* Actual Product May Differ From Image
IDM3764T
Part Number: IDM3764T
Model/Spec Number: 781568144497
Manufacturer: Baldor
HP: 3
RPM: 1165
Frame:Iron
Frame Size:215TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
TENV, TEFC, and TEBC 1000:1 Constant Torque, Provisions for encoder mounting , 3 Thermostats, Standard NEMA frame sizes
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,617.47 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Centrifugal Pumps, Fans, Extruders, Conveyors, Cranes, Hoists, Winders, Web processing, Process Control, Test Stands | ||||
| Enclosure: | TEBC | Frame Size: | 215TC | Agency Approvals: | CSA;UR |
| Frame Material: | Iron | Poles: | 6 | Insulation Class: | H |
| Shaft Rotation: | Reversible: Connected Standard | Base: | Rigid | Horsepower: | 3 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1165 | Max Speed: | 2300 RPM |
| Base Speed: | 1200 RPM | Voltage: | 230/460V | Full Load Amps: | 9/4.5 |
| Service Factor: | 1.00 | Motor Weight: | 187.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 25.58 in | Frequency: | 60 Hz | Phase: | Three Phase |
| Efficiency: | 90.2 % | XP Temp Code: | Without | End Plate: | C-FACE |
| Bearing DE: | 6307 | Bearing ODE: | 6206 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.3750 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 4721.00 |
