Baldor LPL50
* Actual Product May Differ From Image
LPL50
Part Number: LPL50
Model/Spec Number: 781568127865
Manufacturer: Baldor
HP: 1/2
RPM: 3450
Frame:Steel
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Low noise vibration dampening base, Dynamically balanced rotor to increase bearing life, Superior switch design provides optimized torque profiles, Robust heavy gauge steel design
Returns: See policies
Payment methods:
$814.57 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

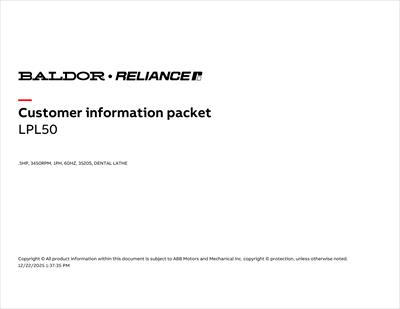

Documents
Product Specifications
| Applications: | Fans, Air handling, Conveyors, Pumps, Material Handling, Machine Tools | ||||
| Enclosure: | TENV | Agency Approvals: | UR | Frame Material: | Steel |
| Poles: | 2 | Insulation Class: | B | Shaft Rotation: | Fixed Opposite Standard |
| Base: | Rigid | Horsepower: | 1/2 Hp | Synchronous RPM: | 3600 |
| Speed RPM: | 3450 | Voltage: | 115V | Full Load Amps: | 5.4 |
| Service Factor: | 1.00 | Motor Weight: | 43.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 14.38 in | Frequency: | 60 Hz | Phase: | Single Phase |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in | IP Rating: | NONE |
| Standard: | Other | List: | 977.00 | ||
