Baldor ECS101T3K4EC4
* Actual Product May Differ From Image
ECS101T3K4EC4
Part Number: ECS101T3K4EC4
Model/Spec Number: 781568993958
Manufacturer: Baldor
HP: 4 kW
Frame:Steel
Frame Size:D112C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Permanent Magnet PWM AC Drive Control, IP54 Gasket Plastic Cover Enclosure, Built in ABB Ability and Bluetooth communications, 2 Digital Inputs, 2 Configurable Inputs, 1 Relay Output, Class F Insulation Internal Grounding Brush
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,261.93 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

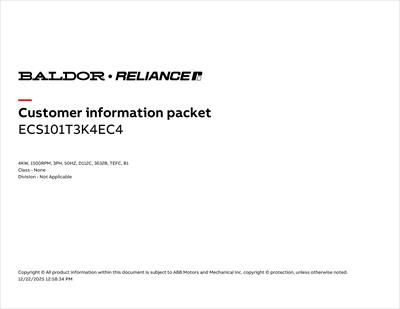

Documents
Product Specifications
| Applications: | Compressors, Blowers, Fans, Unit Handling, HVAC Systems, Pumps, Variable Speed Applications | ||||
| Enclosure: | TEFC | Frame Size: | D112C | Agency Approvals: | BLUETOOTH;CE;CULUS;UKCA;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 4 kW |
| Synchronous RPM: | 1500 | Base Speed: | 1500 RPM | Voltage: | 380V |
| Service Factor: | 1.00 | Motor Weight: | 97.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 16.05 in | Frequency: | 50 Hz | Phase: | Three Phase |
| Efficiency: | 92.4 % | XP Temp Code: | Without | Bearing DE: | 6206 |
| Bearing ODE: | 6205 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.1030 in |
| Shaft Grounding: | Shaft Grounding | IP Rating: | NONE | Standard: | IEC |
| List: | 4257.00 | ||||
