Baldor ECS101T3K3ED4
* Actual Product May Differ From Image
ECS101T3K3ED4
Part Number: ECS101T3K3ED4
Model/Spec Number: 781568997833
Manufacturer: Baldor
HP: 3 kW
Frame:Steel
Frame Size:D112D
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Permanent Magnet PWM AC Drive Control, IP54 Gasket Plastic Cover Enclosure, Built in ABB Ability and Bluetooth communications, 2 Digital Inputs, 2 Configurable Inputs, 1 Relay Output, Class F Insulation Internal Grounding Brush
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,231.28 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

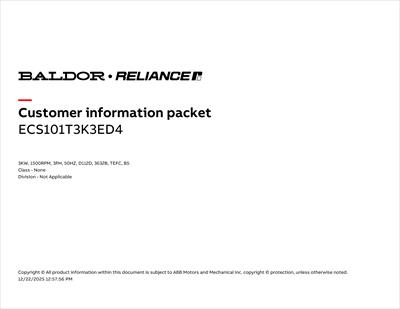

Documents
Product Specifications
| Applications: | Compressors, Blowers, Fans, Unit Handling, HVAC Systems, Pumps, Variable Speed Applications | ||||
| Enclosure: | TEFC | Frame Size: | D112D | Agency Approvals: | BLUETOOTH;CE;CULUS;UKCA;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 3 kW |
| Synchronous RPM: | 1500 | Base Speed: | 1500 RPM | Voltage: | 380V |
| Service Factor: | 1.00 | Motor Weight: | 97.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 18.08 in | Phase: | Three Phase | Efficiency: | 92.4 % |
| XP Temp Code: | Without | Bearing DE: | 6206 | Bearing ODE: | 6205 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.1030 in | Shaft Grounding: | Shaft Grounding |
| IP Rating: | NONE | Standard: | IEC | List: | 4217.00 |
