Baldor FPM2531TS-2/4
* Actual Product May Differ From Image
FPM2531TS-2/4
Part Number: FPM2531TS-2/4
Model/Spec Number: 781568816769
Manufacturer: Baldor
HP: 25
Frame:Steel
Frame Size:284TS
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
1.15 service factor, NEMA design B, UL file E481231, Exterior red paint RAL3002
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,861.15 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

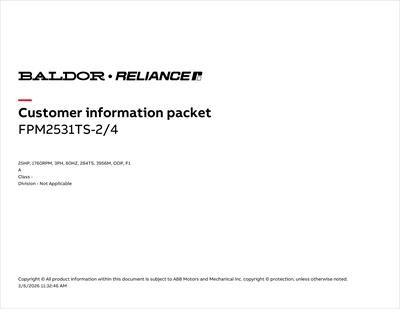

Documents
Product Specifications
| Applications: | UL listed fire pump motors installed per NFPA-20 | ||||
| Enclosure: | ODP | Frame Size: | 284TS | Agency Approvals: | CSA EEV;CULUS |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 25 Hp |
| Synchronous RPM: | 1800 | Voltage: | 200/400V | Service Factor: | 1.15 |
| Motor Weight: | 305.0 lbs | Duty Cycle: | Continuous | Overall Length: | 23.56 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 92.4 % |
| XP Temp Code: | Without | End Plate: | STANDARD | Bearing DE: | 6311 |
| Bearing ODE: | 6208 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in |
| Inverter Duty: | Not Inverter | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 3906.00 | ||
