Baldor HBEM3768T
* Actual Product May Differ From Image
HBEM3768T
Part Number: HBEM3768T
Model/Spec Number: 781568986936
Manufacturer: Baldor
HP: 5
RPM: 1160
Frame:Iron
Frame Size:215T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Suitable for inverter use per NEMA MG1, Sealed Hybrid ceramic bearings to protect against shaft currents, 5 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,263.13 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

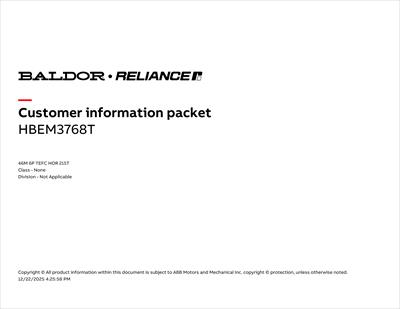

Documents
Product Specifications
| Applications: | Fans, Direct drive applications, HVAC systems | ||||
| Enclosure: | TEFC | Frame Size: | 215T | Agency Approvals: | CURUSEEV;NEMA_PREMIUM;WEEE |
| Frame Material: | Iron | Poles: | 6 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1160 | Max Speed: | 1800 RPM |
| Voltage: | 230/460V | Full Load Amps: | 14.8/7.4 | Service Factor: | 1.15 |
| Motor Weight: | 198.0 lbs | Duty Cycle: | Continuous | Overall Length: | 18.45 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 89.5 % |
| XP Temp Code: | Without | End Plate: | STANDARD | Bearing DE: | 6307 |
| Bearing ODE: | 6206 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.3750 in |
| Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 3359.00 | ||
