Baldor EJPM3711T
* Actual Product May Differ From Image
EJPM3711T
Part Number: EJPM3711T
Model/Spec Number: 781568815809
Manufacturer: Baldor
HP: 10
RPM: 3490
Frame:Steel
Frame Size:215JP
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Oversize ball bearings for pump industry, Locked DE bearing to allow mounting in any configuration, Designed for longevity with a 3 year warranty on premium effecient motors, Suitable for inverter use
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,017.88 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

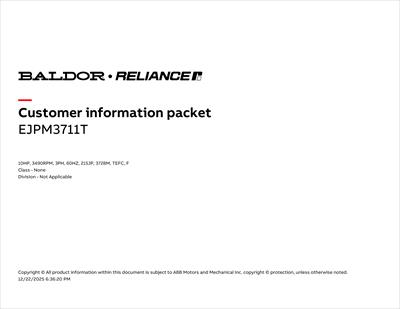

Documents
Product Specifications
| Applications: | Cement, Food, Beverage, Industrial Pumps, Wastewater, Agricultural, Aggregate | ||||
| Enclosure: | TEFC | Frame Size: | 215JP | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 10 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3490 | Voltage: | 230/460V |
| Full Load Amps: | 23.2/11.6 | Service Factor: | 1.15 | Motor Weight: | 118.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 23.64 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 90.2 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6309 | Bearing ODE: | 6206 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.2500 in | Inverter Duty: | Inverter Duty |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 2995.00 | ||||
