Baldor CXL21542

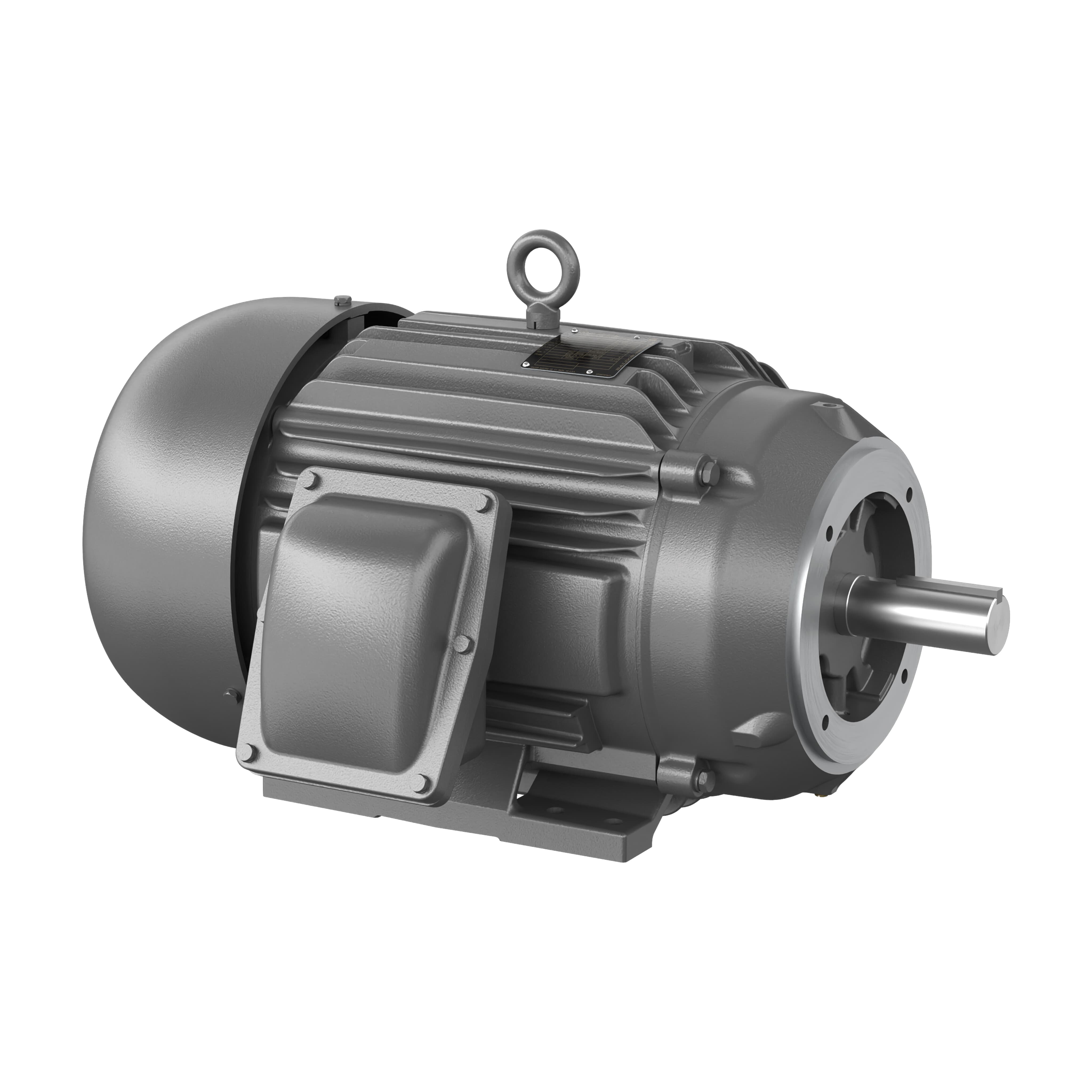

* Actual Product May Differ From Image
CXL21542
Part Number: CXL21542
Model/Spec Number: 781568972618
Manufacturer: Baldor
HP: 5
RPM: 1740
Frame:Steel
Frame Size:215C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust steel frame designs, IP54 ingress protection, 1.15 service factor, Auto thermal overload, Threaded lead inlet, Low noise vibration dampening base
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$4,817.61 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

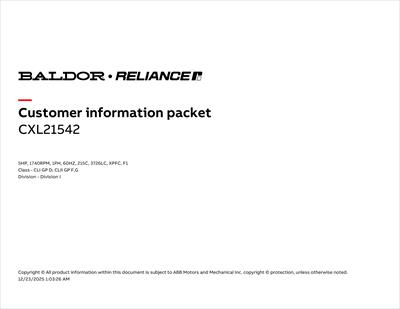

Documents
Product Specifications
| Applications: | Customer specificed division 1 hazardous areas, pumps, fans, conveyors | ||||
| Enclosure: | TEFC | Frame Size: | 215C | Agency Approvals: | CSA;UL |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1740 | Voltage: | 230V |
| Full Load Amps: | 19.7 | Service Factor: | 1.15 | Motor Weight: | 111.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 19.56 in | Frequency: | 60 Hz |
| Phase: | Single Phase | Efficiency: | 84 % | XP Temp Code: | T3C |
| End Plate: | STANDARD | Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in |
| Inverter Duty: | Not Inverter | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 7033.00 | ||
