Baldor DRX40144T

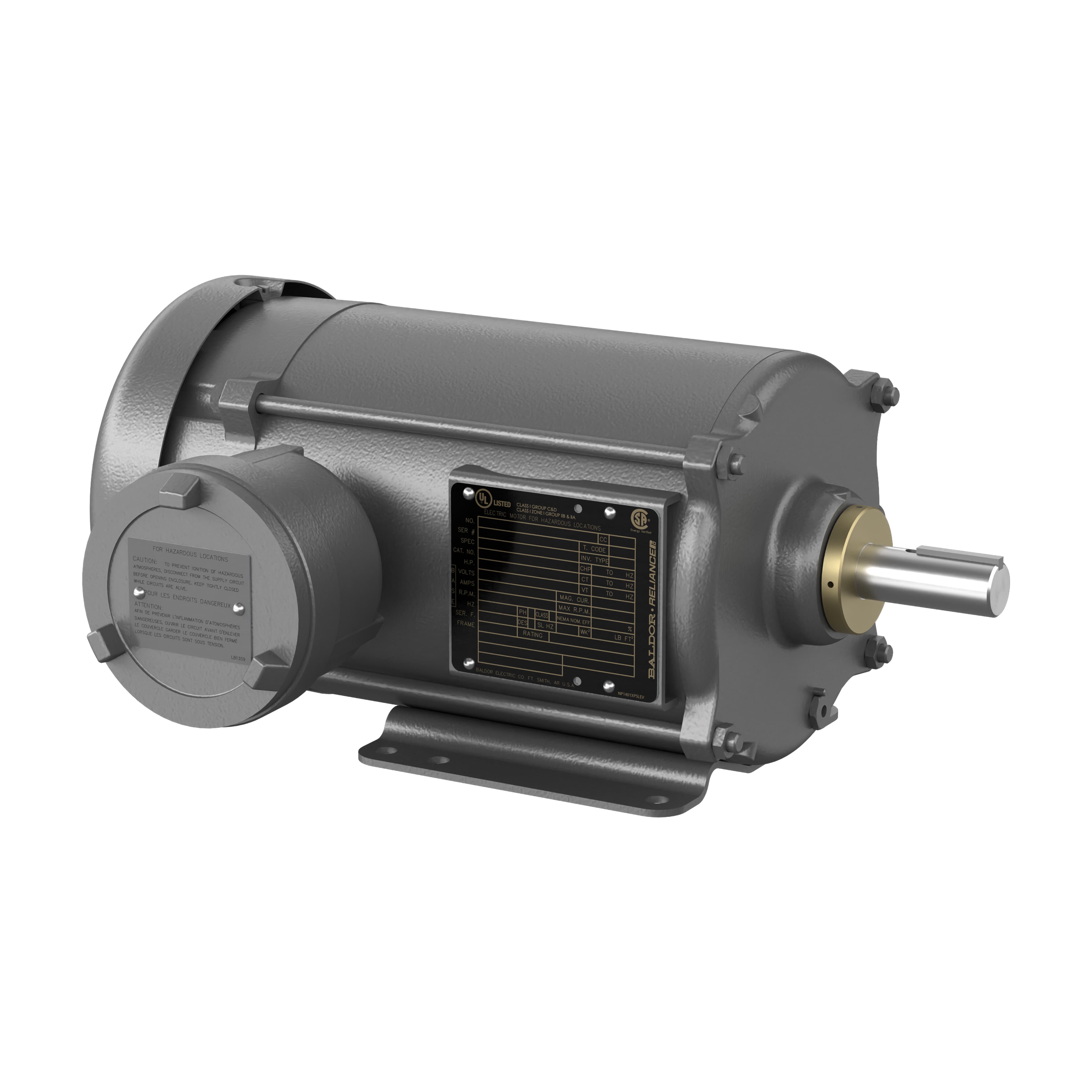

* Actual Product May Differ From Image
DRX40144T
Part Number: DRX40144T
Model/Spec Number: 781568910290
Manufacturer: Baldor
HP: 100
RPM: 1785
Frame:Iron
Frame Size:405T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust steel and cast iron frames, 1.15 service factor, DE shaft slinger, UL breather drains, Threaded lead inlet
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$19,110.25 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Bulk fuel terminals, Division 1 hazardous areas, Transfer stations, Off-shore drilling | ||||
| Enclosure: | TEFC | Frame Size: | 405T | Agency Approvals: | CCSAUSEEV;CSA;UL |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 100 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1785 | Max Speed: | 3600 RPM |
| Voltage: | 230/460V | Full Load Amps: | 224/112 | Service Factor: | 1.15 |
| Motor Weight: | 1326.0 lbs | Duty Cycle: | Continuous | Overall Length: | 38.22 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 95.4 % |
| XP Temp Code: | T3C | End Plate: | STANDARD | Bearing DE: | 80BC03J30X |
| Bearing ODE: | 80BC03J30X | Ambient Temp: | 40 °C | Shaft Diameter: | 2.8750 in |
| Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 28364.00 | ||
