Baldor SPM30012
* Actual Product May Differ From Image
SPM30012
Part Number: SPM30012
Model/Spec Number: 781568586945
Manufacturer: Baldor
HP: 3/4
RPM: 3450
Frame:Steel
Frame Size:48
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Suitable for inverter use per NEMA MG1 part 31.4.4.2, 60 Hz Designs, Designed for longevity with a 4 year warranty on Super Premium efficient SP4 motors, Optimized airflow design providing higher horsepower in a smaller package, Cooler operation for longer lifespan
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$580.17 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

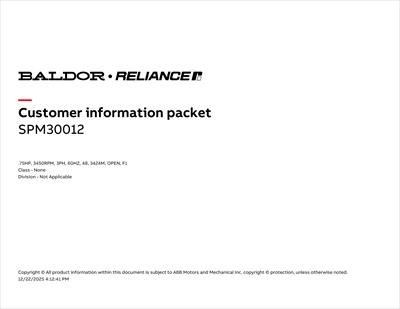

Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other general purpose applications | ||||
| Enclosure: | OPEN | Frame Size: | 48 | Agency Approvals: | C UR US;WEEE |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 3/4 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3450 | Voltage: | 230/460V |
| Full Load Amps: | 2/1 | Service Factor: | 1.25 | Motor Weight: | 30.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 10.63 in | Phase: | Three Phase |
| Efficiency: | 80 % | XP Temp Code: | Without | Bearing DE: | 6203 |
| Bearing ODE: | 6203 | Ambient Temp: | 40 °C | Shaft Diameter: | 0.5000 in |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 861.10 | ||||
