Baldor SPM4314T

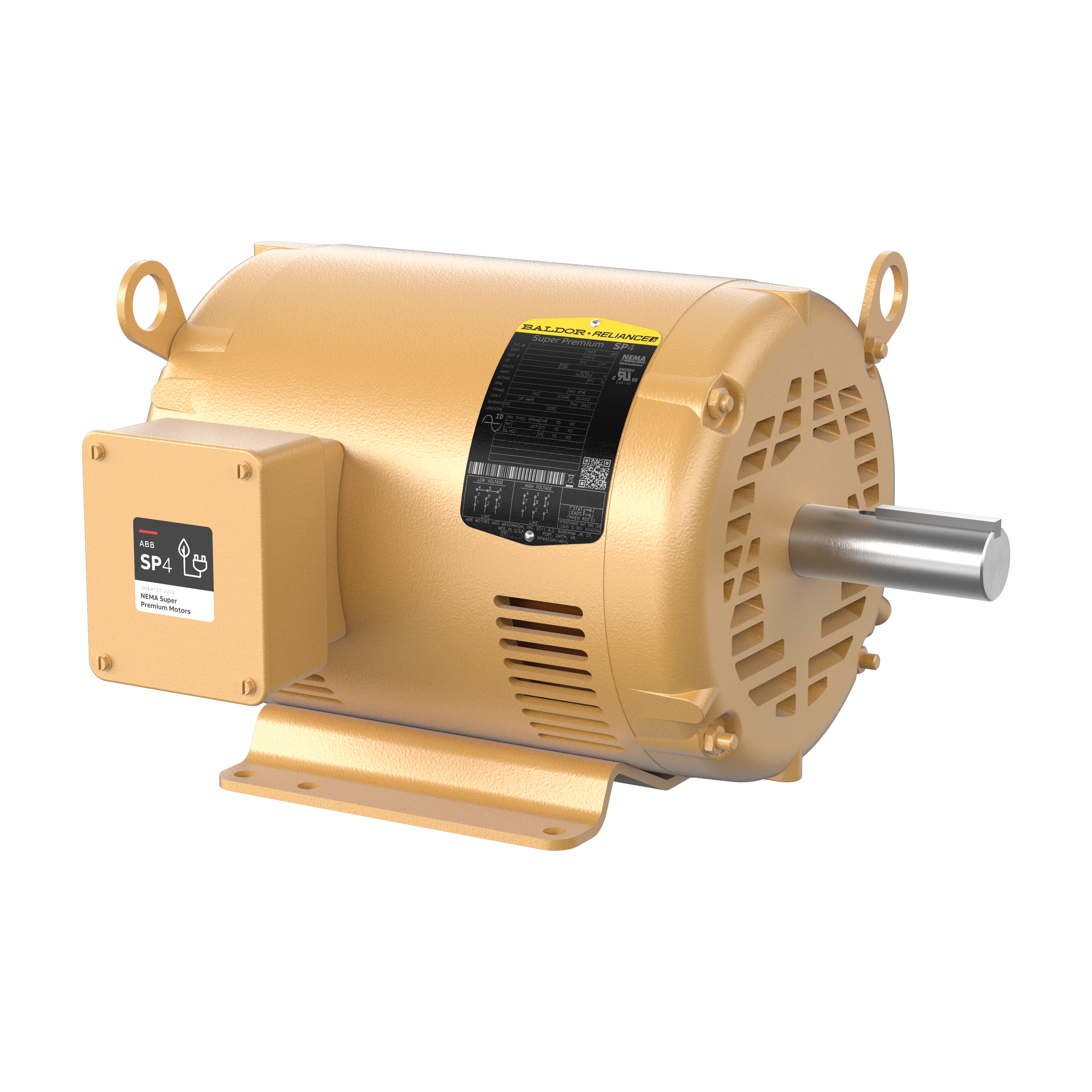

* Actual Product May Differ From Image
SPM4314T
Part Number: SPM4314T
Model/Spec Number: 781568589656
Manufacturer: Baldor
HP: 60
RPM: 1785
Frame:Iron
Frame Size:364T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Suitable for inverter use per NEMA MG1 part 31.4.4.2, 60 Hz Designs, Designed for longevity with a 4 year warranty on Super Premium efficient SP4 motors, Optimized airflow design providing higher horsepower in a smaller package, Cooler operation for longer lifespan
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$10,543.61 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

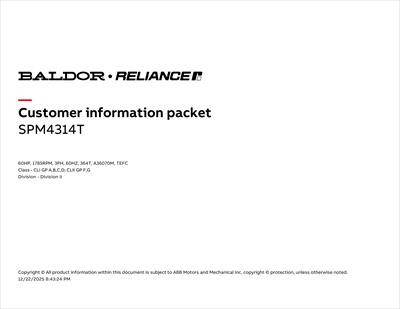

Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other general purpose applications | ||||
| Enclosure: | TEFC | Frame Size: | 364T | Agency Approvals: | CCSAUSEEV;CURUSEEV;NEMA_PREMIUM |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 60 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1785 | Voltage: | 230/460V |
| Full Load Amps: | 140/70 | Service Factor: | 1.15 | Motor Weight: | 965.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 33.48 in | Phase: | Three Phase |
| Efficiency: | 95.4 % | XP Temp Code: | Without | Bearing DE: | 65BC03J30X |
| Bearing ODE: | 65BC03J30X | Ambient Temp: | 40 °C | Shaft Diameter: | 2.3750 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 17179.00 | ||
