Baldor ZDM4102T
* Actual Product May Differ From Image
ZDM4102T
Part Number: ZDM4102T
Model/Spec Number: 781568156452
Manufacturer: Baldor
HP: 20
RPM: 1180
Frame:Iron
Frame Size:286T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Rated torque from zero to base speed, 1024 PPR encoder, Three thermostats, Insulated bearings, 1.0 Service Factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$12,209.43 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

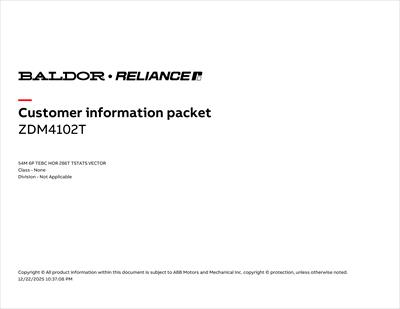

Documents
Product Specifications
| Applications: | Extruders, Conveyors, Cranes, Hoists, Web Processing, Test Stands | ||||
| Enclosure: | TEBC | Frame Size: | 286T | Agency Approvals: | CSA;UR |
| Frame Material: | Iron | Poles: | 6 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 20 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1180 | Max Speed: | 1800 RPM |
| Base Speed: | 1200 RPM | Voltage: | 230/460V | Full Load Amps: | 54/27 |
| Service Factor: | 1.00 | Motor Weight: | 462.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 34.47 in | Frequency: | 60 Hz | Phase: | Three Phase |
| Efficiency: | 91.7 % | XP Temp Code: | Without | End Plate: | STANDARD |
| Bearing DE: | 6311 | Bearing ODE: | 6309 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.8750 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 15934.00 |
