Baldor CDMG2320
* Actual Product May Differ From Image
CDMG2320
Part Number: CDMG2320
Model/Spec Number: 781568215661
Manufacturer: Baldor
HP: 20 kW
Frame:Steel
Frame Size:288ATC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron endplates and conduit box, 300 series stainless steel shaft extension, 2 part epoxy paint system passed 2000+ hour salt fog testper ASTM B 117, Permanently lubricated, double sealed ball bearings, IP56 enclosure includes labyrinth shaft seals, Gasketed conduit box, inverter duty nameplate, Meets IEEE 45 on nameplate, Class F insulated motor with 1.15 service factor or higher that operates within Class "B" temperature limits at rated horsepower
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$23,164.64 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

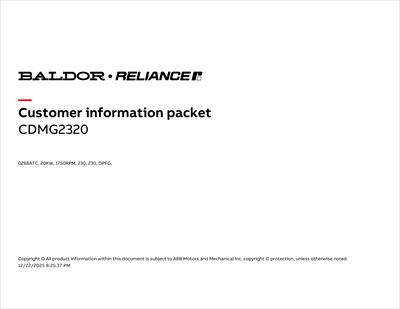

Documents
Product Specifications
| Applications: | Chemical, Oil, Gas, Coastal Marine, Pulp, Paper, Forest Production | ||||
| Enclosure: | DPFG | Frame Size: | 288ATC | Agency Approvals: | CSA |
| Frame Material: | Steel | Insulation Class: | F | Base: | Rigid |
| Horsepower: | 20 kW | Base Speed: | 1750 RPM | Field Voltage: | 230V |
| Armature Current: | 87.0000 | Service Factor: | 1.00 | Motor Weight: | 600.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 32 in | XP Temp Code: | Without |
| Bearing DE: | 6210 | Bearing ODE: | 6209 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.8750 in | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 29276.00 | ||
