Baldor CD2015P-2
* Actual Product May Differ From Image
CD2015P-2
Part Number: CD2015P-2
Model/Spec Number: 781568134085
Manufacturer: Baldor
HP: 15
Frame:Steel
Frame Size:258ATC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
High dieelectric stability, Low inertia, Includes thermostat, Constant pressure brush springs, Class F insulation, Includes grease fittings, Tachometer adaptable, Blower ventilated
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$15,820.25 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents

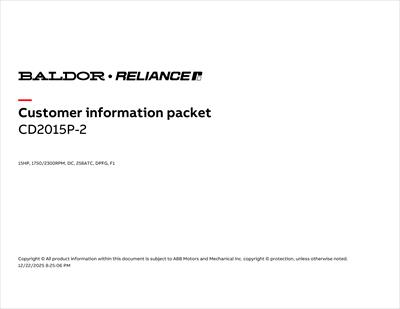

Product Specifications
| Applications: | Conveyors, Plastic Extruders, Packaging machinery | ||||
| Enclosure: | DPFG | Frame Size: | 258ATC | Agency Approvals: | CSA |
| Frame Material: | Steel | Insulation Class: | F | Base: | Rigid |
| Horsepower: | 15 Hp | Max Speed: | 2300 RPM | Base Speed: | 1750 RPM |
| Field Voltage: | 120/240V | Armature Current: | 55.0000 | Service Factor: | 1.00 |
| Motor Weight: | 420.0010 lbs | Duty Cycle: | Continuous | Overall Length: | 29.84 in |
| XP Temp Code: | Without | Bearing DE: | 6209 | Bearing ODE: | 6207 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.6240 in | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 19994.00 |
