Baldor XEFRPM28304
* Actual Product May Differ From Image
XEFRPM28304
Part Number: XEFRPM28304
Model/Spec Number: 781568837689
Manufacturer: Baldor
HP: 30
Frame:Exposed Laminations
Frame Size:HL286T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Effeciency two to four levels above NEMA, Power dense and standard NEMA frames, Designed for across the line operation, Shaft grounding brush
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$10,029.45 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

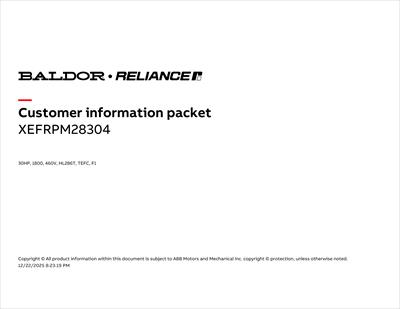

Documents
Product Specifications
| Applications: | Centrifugal fan, Pumps, Compressors | ||||
| Enclosure: | TEFC | Frame Size: | HL286T | Agency Approvals: | CCSA US;NEMA_PREMIUM |
| Frame Material: | Exposed Laminations | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 30 Hp |
| Synchronous RPM: | 1800 | Voltage: | 460V | Service Factor: | 1.15 |
| Motor Weight: | 365.0 lbs | Duty Cycle: | Continuous | Overall Length: | 27.37 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 95.4 % |
| XP Temp Code: | Without | End Plate: | OTHER | Bearing DE: | 50BC03J30X |
| Bearing ODE: | 45BC02J30X | Ambient Temp: | 40 °C | Shaft Diameter: | 1.8750 in |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | IP54 | Standard: | NEMA |
| List: | 13089.00 | ||||
