Baldor ZDNRPM18074C
* Actual Product May Differ From Image
ZDNRPM18074C
Part Number: ZDNRPM18074C
Model/Spec Number: 781568468609
Manufacturer: Baldor
HP: 7 1/2
RPM: 1775/3545
Frame:Exposed Laminations
Frame Size:FL1852CZ
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Power dense square laminated frame, 1000:1 constant torque, Class H, 3 Thermostats, Inverter use only, Induction and caged IPM rotors, Shaft grounding
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$8,375.88 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

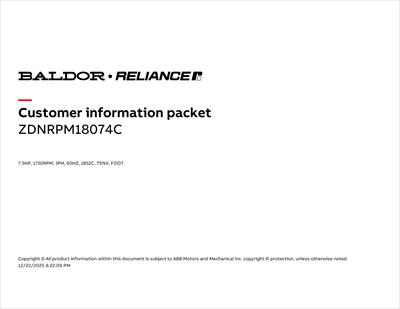

Documents
Product Specifications
| Applications: | Winders, Extruders, Conveyors, Cranes, Hoists, Centrifugal pumps, Web processing, Test stands | ||||
| Enclosure: | TENV | Frame Size: | FL1852CZ | Agency Approvals: | CCSA US |
| Frame Material: | Exposed Laminations | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 7 1/2 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1775/3545 | Base Speed: | 1800 RPM |
| Voltage: | 230/460V | Service Factor: | 1.00 | Motor Weight: | 221.9990 lbs |
| Duty Cycle: | Continuous | Overall Length: | 26.37 in | Frequency: | 60 Hz |
| Phase: | Three Phase | XP Temp Code: | Without | End Plate: | C-FACE |
| Bearing DE: | 45BC02JPP30A | Bearing ODE: | 35BC02JPP30A | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.3750 in | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 10931.00 | ||
