Baldor ECP506004-PP4
* Actual Product May Differ From Image
ECP506004-PP4
Part Number: ECP506004-PP4
Model/Spec Number: 781568997260
Manufacturer: Baldor
HP: 600
RPM: 1792
Frame:Cast Iron
Frame Size:5012L
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Regreasable bearings all frames, 304 Stainless steel nameplates, Inverter Duty nameplate, Division 2/Class 1 Groups A-B-C-D markings on nameplate, Insulated NDE bearing on 5000 frames, Class F insulated motor with 1.15 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$47,313.38 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

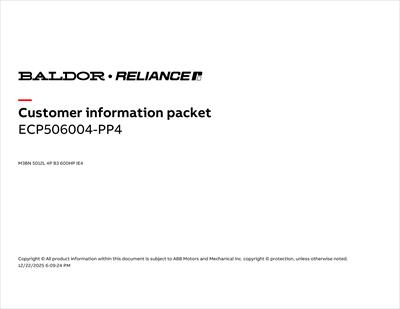

Documents
Product Specifications
| Applications: | Power Generation, Metal & Foundries, Chemical, Oil, Gas, Food Processing, Pulp, Paper, Forest production, Wastewater treatment, Cement | ||||
| Enclosure: | TEFC | Frame Size: | 5012L | Agency Approvals: | - |
| Frame Material: | Cast Iron | Poles: | 4 | Insulation Class: | F |
| Horsepower: | 600 Hp | Synchronous RPM: | 1800 | Speed RPM: | 1792 |
| Voltage: | 460V | Full Load Amps: | 679.00 | Service Factor: | 1.15 |
| Motor Weight: | 5225.0 lbs | Duty Cycle: | Continuous | Overall Length: | 74 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 96.8 % |
| XP Temp Code: | Without | Bearing DE: | 6324/C3 | Bearing ODE: | 6319/C3VL0241 |
| Ambient Temp: | 40 °C | IP Rating: | IP66 | Standard: | IEC |
| List: | 84300.00 | ||||
