Baldor IDFRPM18104C
* Actual Product May Differ From Image
IDFRPM18104C
Part Number: IDFRPM18104C
Model/Spec Number: 781568465226
Manufacturer: Baldor
HP: 10
RPM: 1765/3530
Frame:Exposed Laminations
Frame Size:FL1844CZ
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Power dense square laminated frame, 1000:1 constant torque, Class H, 3 Thermostats, Inverter use only, Induction and caged IPM rotors, Shaft grounding
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$5,963.72 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

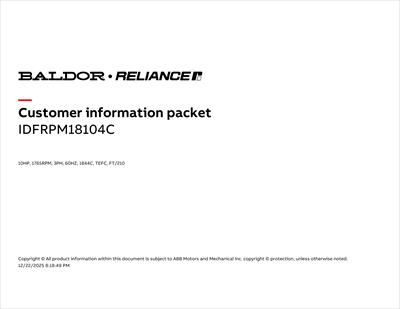

Documents
Product Specifications
| Applications: | Winders, Extruders, Conveyors, Cranes, Hoists, Centrifugal pumps, Web processing, Test stands | ||||
| Enclosure: | TEFC | Frame Size: | FL1844CZ | Agency Approvals: | CCSA US |
| Frame Material: | Exposed Laminations | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 10 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1765/3530 | Base Speed: | 1800 RPM |
| Voltage: | 230/460V | Service Factor: | 1.00 | Motor Weight: | 179.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 23.26 in | Frequency: | 60 Hz |
| Phase: | Three Phase | XP Temp Code: | Without | End Plate: | C-FACE |
| Bearing DE: | 45BC02JPP30A | Bearing ODE: | 35BC02JPP30A | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.3750 in | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 7783.00 | ||
