Baldor L1177T
* Actual Product May Differ From Image
L1177T
Part Number: L1177T
Model/Spec Number: 781568100929
Manufacturer: Baldor
HP: 15
RPM: 1760
Frame:Iron
Frame Size:254T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Low noise vibration dampening base, Dynamically balanced rotor to increase bearing life, Superior switch design provides optimized torque profiles, Robust heavy gauge steel design.
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$7,115.10 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

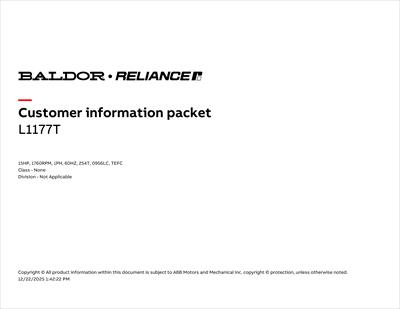

Documents
Product Specifications
| Applications: | Fans, Air handling, Conveyors, Pumps, Material Handling, Machine Tools | ||||
| Enclosure: | TEFC | Frame Size: | 254T | Agency Approvals: | CSA;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 15 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1760 | Voltage: | 230V |
| Full Load Amps: | 60 | Service Factor: | 1.00 | Motor Weight: | 307.9990 lbs |
| Duty Cycle: | Continuous | Overall Length: | 23.36 in | Frequency: | 60 Hz |
| Phase: | Single Phase | Efficiency: | 86.5 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6309 | Bearing ODE: | 6307 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 10387.00 | ||||
