Baldor UCM713

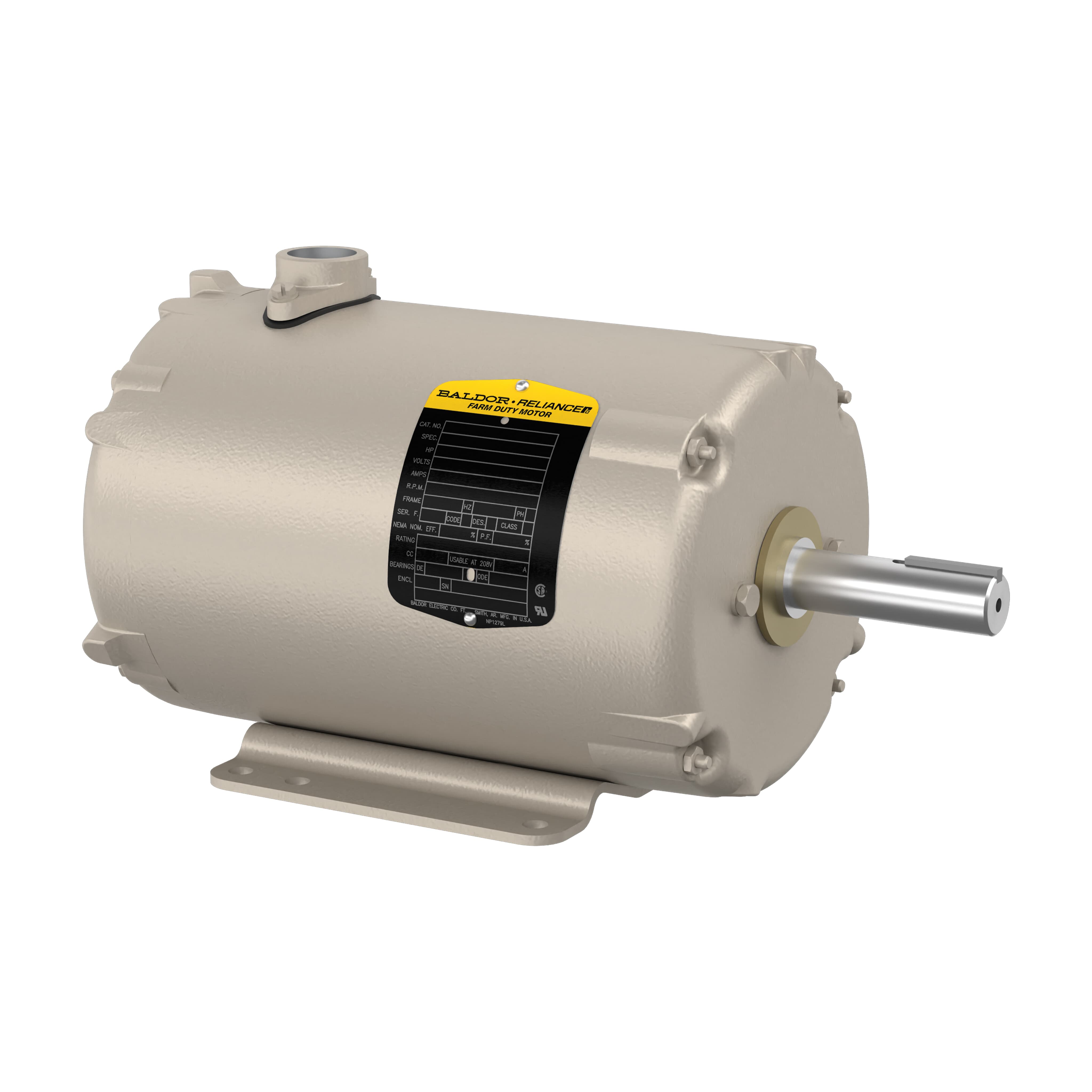

* Actual Product May Differ From Image
UCM713
Part Number: UCM713
Model/Spec Number: 781568122280
Manufacturer: Baldor
Frame Size:184TZ
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,303.63 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days
586.469.0710
Typically Ships: 1-2 Days
Ships via UPS
Documents
Product Specifications
| Enclosure: | ODP | Frame Size: | 184TZ | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 7.5 - 10 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3450 | Voltage: | 208-230/460V |
| Full Load Amps: | 25-24/12 | Service Factor: | 1.00 | Motor Weight: | 89.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 16.87 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 84 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6206 | Bearing ODE: | 6205 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1869.00 |
