Baldor EM2571T-4
* Actual Product May Differ From Image
EM2571T-4
Part Number: EM2571T-4
Model/Spec Number: 781568809822
Manufacturer: Baldor
HP: 350
RPM: 3570
Frame:Iron
Frame Size:449TS
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
60 Hz designs with 50 Hz information on 2,4,6 pole 1-125 HP ratings, Suitable for inverter use per NEMA MG1 Part 31.4.4.2 unless 38 is indicated, Simple F1 to F2 conversion on cast iron frames, Designed for longevity with a 3 year warranty on NEMA premium effecient motors
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$34,603.80 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

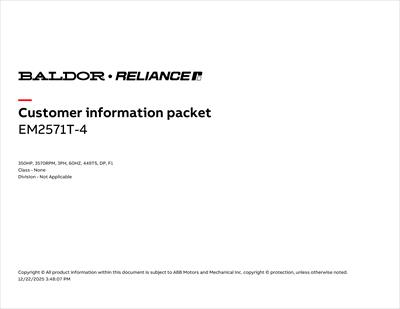

Documents
Product Specifications
| Applications: | Other general purpose applications, Fans, Conveyors, Blowers, Compressors, Pumps, Industrial Machines | ||||
| Enclosure: | ODP | Frame Size: | 449TS | Agency Approvals: | CCSAUSEEV |
| Frame Material: | Iron | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 350 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3570 | Voltage: | 460V |
| Full Load Amps: | 380 | Service Factor: | 1.15 | Motor Weight: | 2100.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 44.31 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 95.4 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 65BC03J30X | Bearing ODE: | 65BC03J30X |
| Ambient Temp: | 40 °C | Shaft Diameter: | 2.3750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 51360.00 | ||||
