Baldor VEUHM3546T-5

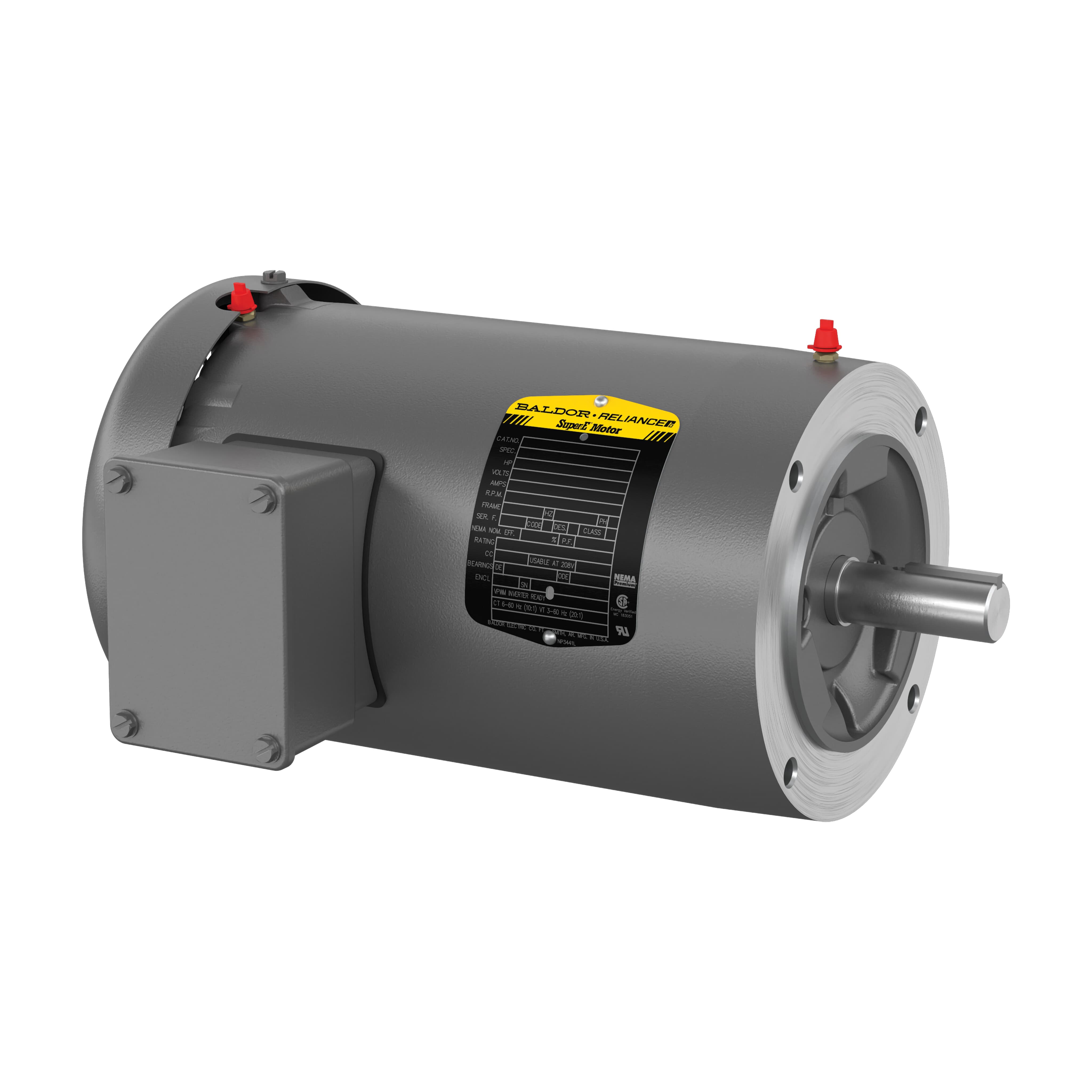

* Actual Product May Differ From Image
VEUHM3546T-5
Part Number: VEUHM3546T-5
Model/Spec Number: 781568542224
Manufacturer: Baldor
HP: 1
RPM: 1775
Frame:Steel
Frame Size:143TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Low profile F-3 conduit box, Multiple base mounting configurations, Color coded and numbered leads for ease of connectivity, Inverter Duty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$749.88 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Conveyors, Unit Handling, Baggage Handling, Packaging Equipment, Door Operators | ||||
| Enclosure: | TEFC | Frame Size: | 143TC | Agency Approvals: | CE;CSA EEV;NEMA_PREMIUM;UR;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 1 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1775 | Voltage: | 575V |
| Full Load Amps: | 1.3 | Service Factor: | 1.15 | Motor Weight: | 38.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 13.29 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 85.5 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6205 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.8750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1113.00 | ||||
