Baldor SUM75006-4
* Actual Product May Differ From Image
SUM75006-4
Part Number: SUM75006-4
Model/Spec Number: 781568838365
Manufacturer: Baldor
HP: 50
RPM: 1180
Frame:Iron
Frame Size:320TY
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Continuous duty in water/sewage, 15 minute in air, 416 stainless steel shaft, Dual carbon ceramic mechanical seals, Two NC thermostats, Dual moisture sensing probes, 1.15 service factor, 5 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$26,383.16 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

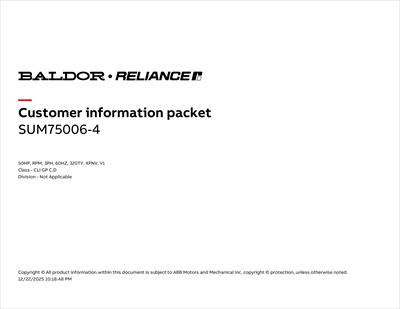

Documents
Product Specifications
| Applications: | Wet pit applications, Slurry pumps, Aerators, Mixers | ||||
| Enclosure: | TENV | Frame Size: | 320TY | Agency Approvals: | CCSA US;CSA;UL |
| Frame Material: | Iron | Poles: | 6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 50 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1180 | Voltage: | 460V |
| Full Load Amps: | 63 | Service Factor: | 1.15 | Motor Weight: | 890.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 48.63 in | Phase: | Three Phase |
| Efficiency: | 90.5 % | XP Temp Code: | T3C | End Plate: | D-FLANGE |
| Bearing DE: | 85BJ33J30X | Bearing ODE: | 50BC03JPG30A | Ambient Temp: | 0 °C |
| Shaft Diameter: | 2.4990 in | Inverter Duty: | Not Inverter | IP Rating: | NONE |
| Standard: | NEMA | List: | 37029.00 | ||
