Baldor CD5333

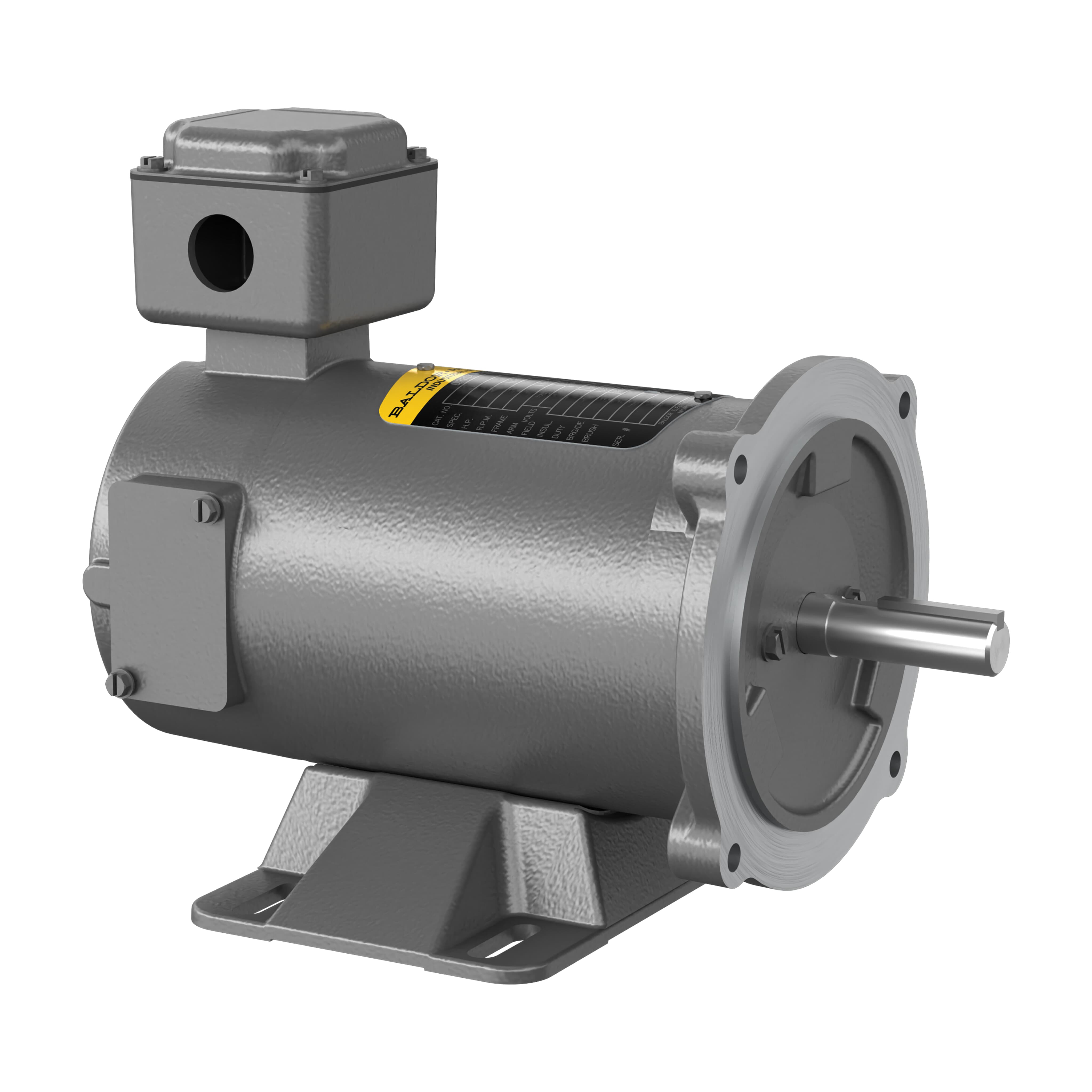

* Actual Product May Differ From Image
CD5333
Part Number: CD5333
Model/Spec Number: 781568124703
Manufacturer: Baldor
HP: 1/3
Frame:Steel
Frame Size:56C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Designed for use with NEMA Type K SCR control, NEMA C-Face and removable base, Class F insulation, 1.0 Service Factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,259.24 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Machine Tools, Conveyors, Printing and Textile Equipment | ||||
| Enclosure: | TEFC | Frame Size: | 56C | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Insulation Class: | F | Shaft Rotation: | Reversible |
| Base: | Rigid | Horsepower: | 1/3 Hp | Base Speed: | 1750 RPM |
| Field Voltage: | 100/50V | Armature Current: | 3.7000 | Service Factor: | 1.00 |
| Motor Weight: | 31.0 lbs | Duty Cycle: | Continuous | Overall Length: | 13.82 in |
| XP Temp Code: | Without | Bearing DE: | 6205 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 1869.00 |
