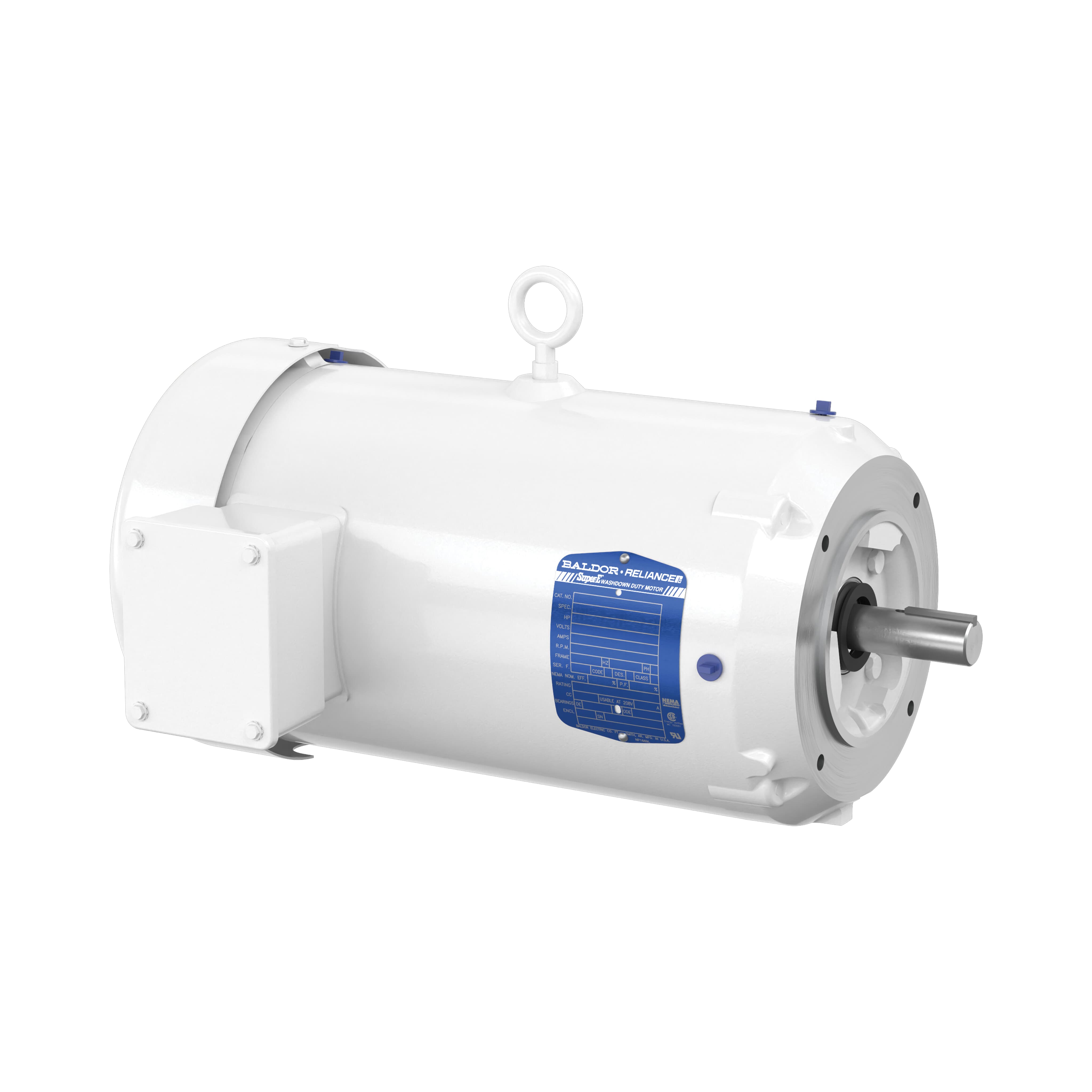

Baldor VEWDM3561
* Actual Product May Differ From Image
VEWDM3561
Part Number: VEWDM3561
Model/Spec Number: 781568931639
Manufacturer: Baldor
HP: 3
RPM: 1760
Frame:Steel
Frame Size:56C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
300 series stainless steel hardware, Neoprene gaskets, Double sealed ball bearings, Lip and V-ring seal on DE, White epoxy corrosion resistant finish, Stainless steel shaft extension, 3 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,463.39 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Packaging, Food Processing, Pumps, Wastewater, Wet environment | ||||
| Enclosure: | TEFC | Frame Size: | 56C | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 3 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1760 | Voltage: | 230/460V |
| Full Load Amps: | 8.4/4.2 | Service Factor: | 1.15 | Motor Weight: | 73.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 15.61 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 89.5 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6206 | Bearing ODE: | 6205 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in | Inverter Duty: | Inverter Duty |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 2172.00 | ||||
