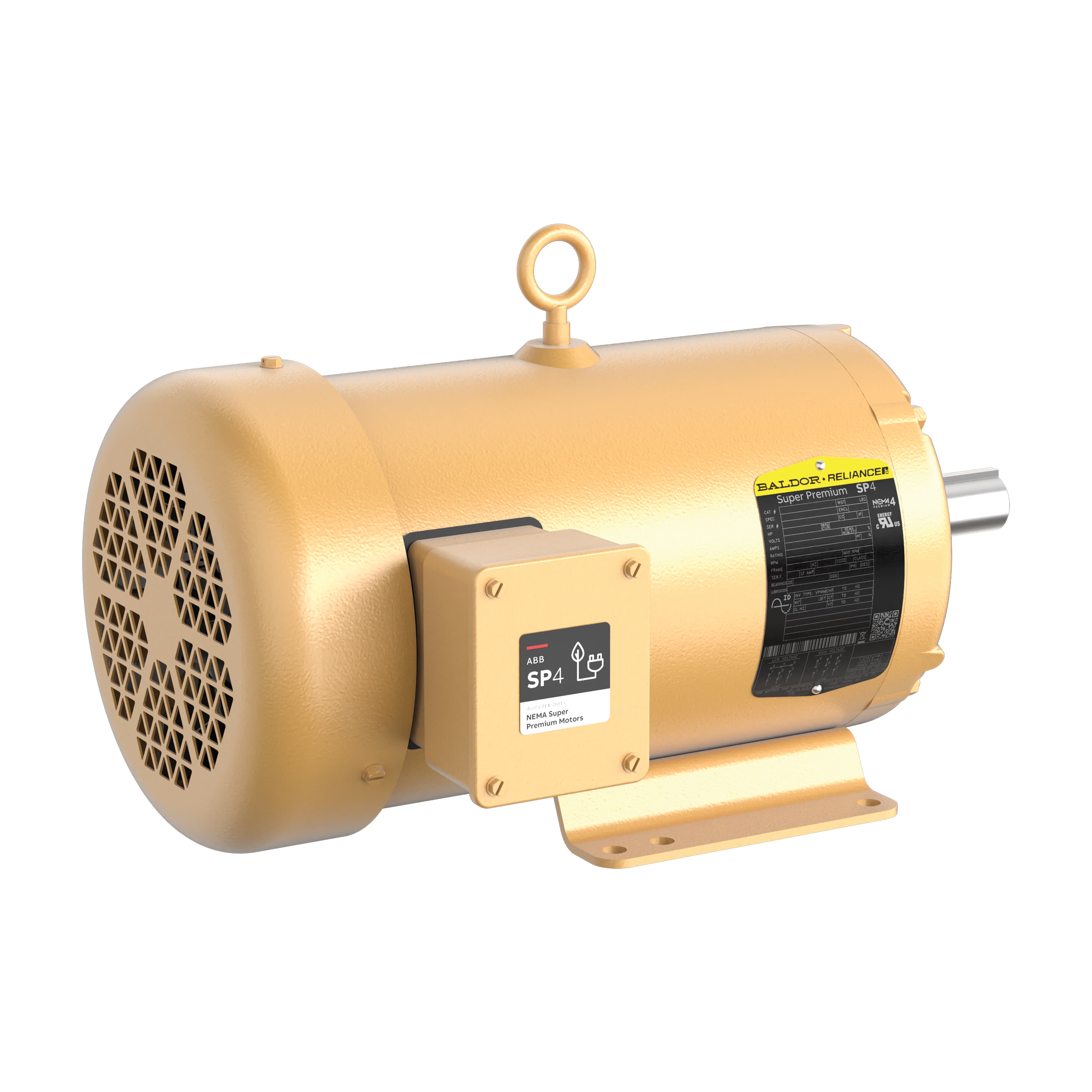

Baldor SPM2511T-G
* Actual Product May Differ From Image
SPM2511T-G
Part Number: SPM2511T-G
Model/Spec Number: 781568661581
Manufacturer: Baldor
HP: 10
RPM: 1180
Frame:Steel
Frame Size:256T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Suitable for inverter use per NEMA MG1 part 31.4.4.2, 60 Hz Designs, Designed for longevity with a 4 year warranty on Super Premium efficient SP4 motors, Optimized airflow design providing higher horsepower in a smaller package, Cooler operation for longer lifespan
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,090.49 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other general purpose applications | ||||
| Enclosure: | ODP | Frame Size: | 256T | Agency Approvals: | - |
| Frame Material: | Steel | Poles: | 6 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 10 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1180 | Voltage: | 230/460V |
| Full Load Amps: | 29/14.5 | Service Factor: | 1.25 | Motor Weight: | 288.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 24.21 in | Phase: | Three Phase |
| Efficiency: | 92.4 % | XP Temp Code: | Without | Bearing DE: | 6309 |
| Bearing ODE: | 6208 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 4587.00 | ||
