Baldor GNEM3611T-G
* Actual Product May Differ From Image
GNEM3611T-G
Part Number: GNEM3611T-G
Model/Spec Number: 781568853580
Manufacturer: Baldor
HP: 2.2//3 kW/Hp
RPM: 1760//1460
Frame:Steel
Frame Size:182T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
50/60 Hz Design, Designed for longevity with 3 year warranty, Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,323.92 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

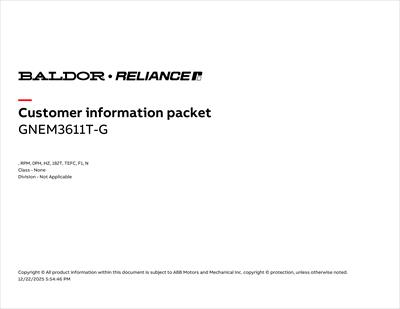

Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Air Handling, HVAC Systems, General Purpose Applications | ||||
| Enclosure: | TEFC | Frame Size: | 182T | Agency Approvals: | CE;CSA;IE3;UR;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 2.2//3 kW/Hp |
| Synchronous RPM: | 1500//1800 | Speed RPM: | 1760//1460 | Voltage: | 190/380//208-230/460V |
| Full Load Amps: | 9-8.8/4.4//10.2/5.1 | Service Factor: | 1.15 | Motor Weight: | 88.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 18.04 in | Frequency: | 50;60 Hz |
| Phase: | Three Phase | Efficiency: | 90.2 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6206 | Bearing ODE: | 6205 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1965.00 | ||||
