Baldor IDDRPM5017504

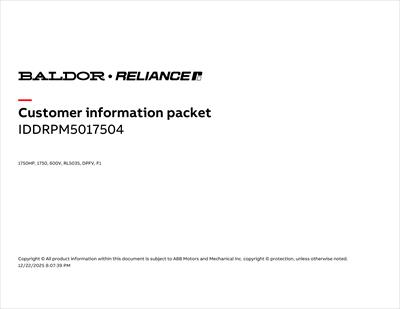

* Actual Product May Differ From Image
IDDRPM5017504
Part Number: IDDRPM5017504
Model/Spec Number: 781568986516
Manufacturer: Baldor
HP: 1750
Frame:Exposed Laminations
Frame Size:RL5035Z
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Power dense square laminated frame, 1000:1 constant torque, Class H, 3 Thermostats, Inverter use only, Induction and caged IPM rotors, Shaft grounding
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$166,746.73 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Winders, Extruders, Conveyors, Cranes, Hoists, Centrifugal pumps, Web processing, Test stands | ||||
| Enclosure: | DPG-FV | Frame Size: | RL5035Z | Agency Approvals: | CCSA US |
| Frame Material: | Exposed Laminations | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1750 Hp |
| Synchronous RPM: | 1800 | Base Speed: | 1800 RPM | Voltage: | 600V |
| Service Factor: | 1.00 | Motor Weight: | 6730.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 77.32 in | Frequency: | 60 Hz | Phase: | Three Phase |
| XP Temp Code: | Without | End Plate: | STANDARD | Bearing DE: | 120BC02J30X |
| Bearing ODE: | 6224/C3J20AA | Ambient Temp: | 40 °C | Shaft Diameter: | 4.2500 in |
| Shaft Grounding: | Shaft Grounding | Standard: | NEMA | List: | 217614.00 |
