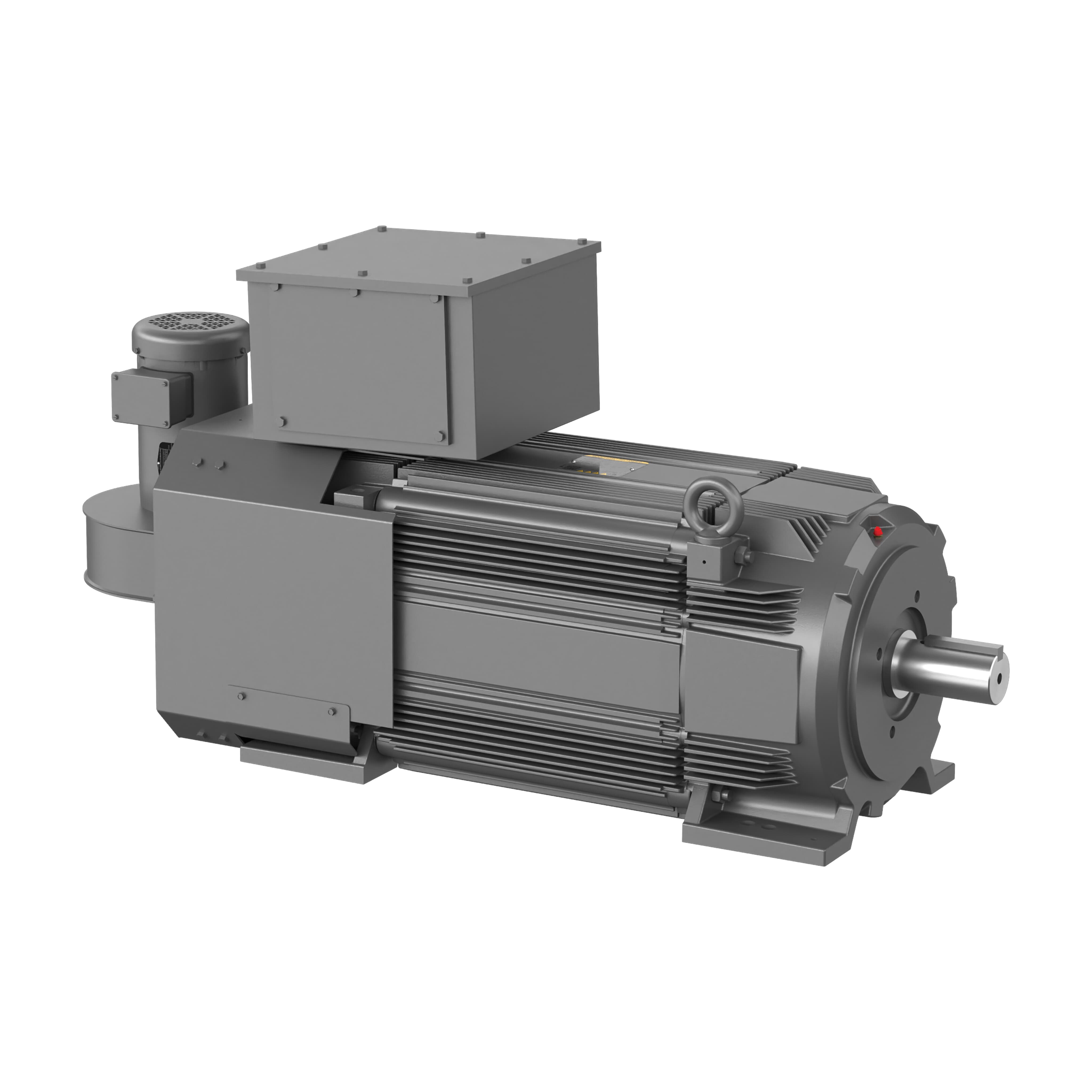

Baldor IDDRPM363504R2
* Actual Product May Differ From Image
IDDRPM363504R2
Part Number: IDDRPM363504R2
Model/Spec Number: 781568580509
Manufacturer: Baldor
HP: 350
Frame:Laminated
Frame Size:RL3614Z
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Power dense square laminated frame, 1000:1 constant torque, Class H, 3 Thermostats, Inverter use only, Induction and caged IPM rotors, Shaft grounding
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$48,945.75 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

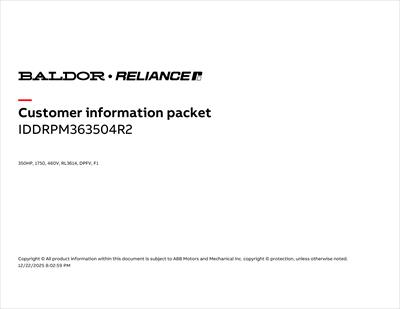

Documents
Product Specifications
| Applications: | Winders, Extruders, Conveyors, Cranes, Hoists, Centrifugal pumps, Web processing, Test stands | ||||
| Enclosure: | DPG-FV | Frame Size: | RL3614Z | Agency Approvals: | CCSA US |
| Frame Material: | Laminated | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 350 Hp |
| Synchronous RPM: | 1800 | Base Speed: | 1800 RPM | Voltage: | 460V |
| Service Factor: | 1.00 | Motor Weight: | 2000.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 52.7 in | Frequency: | 60 Hz | Phase: | Three Phase |
| XP Temp Code: | Without | End Plate: | STANDARD | Bearing DE: | 95BC02J30X |
| Bearing ODE: | 80BC03J30X | Ambient Temp: | 40 °C | Shaft Diameter: | 2.8740 in |
| Shaft Grounding: | Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 63877.00 | ||||
