Baldor IDDRPM281504M001
* Actual Product May Differ From Image
IDDRPM281504M001
Part Number: IDDRPM281504M001
Model/Spec Number: 781568960707
Manufacturer: Baldor
HP: 150
RPM: 1755
Frame:Exposed Laminations
Frame Size:RL2882Z
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Power dense square laminated frame, 1000:1 constant torque, Class H, 3 Thermostats, Inverter use only, Induction and caged IPM rotors, Shaft grounding
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$21,248.88 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

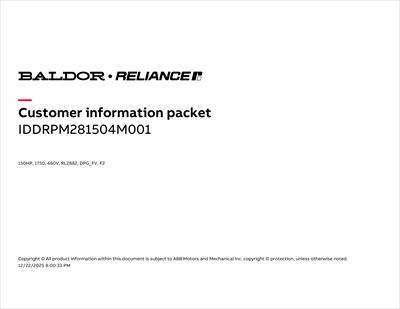

Documents
Product Specifications
| Applications: | Winders, Extruders, Conveyors, Cranes, Hoists, Centrifugal pumps, Web processing, Test stands | ||||
| Enclosure: | DPG-FV | Frame Size: | RL2882Z | Agency Approvals: | CCSA US |
| Frame Material: | Exposed Laminations | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 150 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1755 | Base Speed: | 1800 RPM |
| Voltage: | 460V | Service Factor: | 1.00 | Motor Weight: | 817.9990 lbs |
| Duty Cycle: | Continuous | Overall Length: | 38.81 in | Frequency: | 60 Hz |
| Phase: | Three Phase | XP Temp Code: | Without | End Plate: | STANDARD |
| Bearing DE: | 75BC02J30X | Bearing ODE: | 55BC02J30X | Ambient Temp: | 40 °C |
| Shaft Diameter: | 2.6240 in | Shaft Grounding: | No Shaft Grounding | IP Rating: | IP23 |
| Standard: | NEMA | List: | 27731.00 | ||
A&C Electric is a certified distributor service center.
