Baldor UCLE3145
* Actual Product May Differ From Image
UCLE3145
Part Number: UCLE3145
Model/Spec Number: 781568221976
Manufacturer: Baldor
Frame Size:143TZ
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,288.51 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days
586.469.0710
Typically Ships: 1-2 Days
Ships via UPS

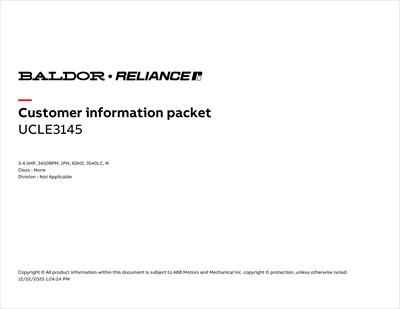

Documents
Product Specifications
| Enclosure: | TEAO | Frame Size: | 143TZ | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 3 - 4.5 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3450 | Voltage: | 230V |
| Full Load Amps: | 12.5-18.5 | Service Factor: | 1.00 | Motor Weight: | 61.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 15.62 in | Frequency: | 60 Hz |
| Phase: | Single Phase | Efficiency: | 82.5 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6206 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.8750 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1818.00 |
