Baldor SUM71004
* Actual Product May Differ From Image
SUM71004
Part Number: SUM71004
Model/Spec Number: 781568790960
Manufacturer: Baldor
HP: 10
RPM: 1765
Frame:Iron
Frame Size:210TY
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Continuous duty in water/sewage, 15 minute in air, 416 stainless steel shaft, Dual carbon ceramic mechanical seals, Two NC thermostats, Dual moisture sensing probes, 1.15 service factor, 5 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$7,393.61 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

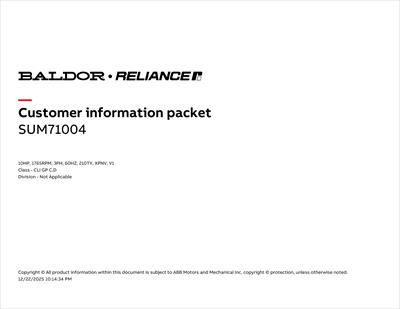

Documents
Product Specifications
| Applications: | Wet pit applications, Slurry pumps, Aerators, Mixers | ||||
| Enclosure: | TENV | Frame Size: | 210TY | Agency Approvals: | CCSA US |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 10 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1765 | Voltage: | 230/460V |
| Full Load Amps: | 25/12.5 | Service Factor: | 1.15 | Motor Weight: | 356.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 31.93 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 85.6 % | XP Temp Code: | T3C |
| End Plate: | STANDARD | Bearing DE: | 60BC02JPP30A | Bearing ODE: | 30BC02JPG30A |
| Ambient Temp: | 0 °C | Shaft Diameter: | 1.4370 in | Inverter Duty: | Not Inverter |
| IP Rating: | NONE | Standard: | NEMA | List: | 10377.00 |
