Baldor JMEWDM3550T
* Actual Product May Differ From Image
JMEWDM3550T
Part Number: JMEWDM3550T
Model/Spec Number: 781568774137
Manufacturer: Baldor
HP: 1 1/2
RPM: 3500
Frame:Steel
Frame Size:143JM
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
300 series stainless steel hardware, Neoprene gaskets, Double sealed ball bearings, Lip and V-ring seal on DE, White epoxy corrosion resistant finish, Stainless steel shaft extension, 3 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,272.71 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

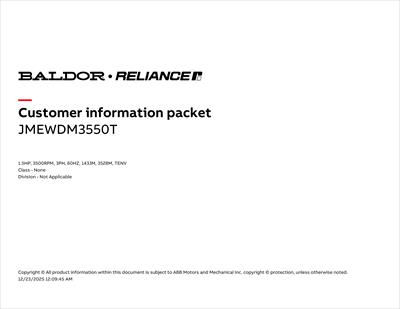

Documents
Product Specifications
| Applications: | Packaging, Food Processing, Pumps, Wastewater, Wet environment | ||||
| Enclosure: | TENV | Frame Size: | 143JM | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1 1/2 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3500 | Voltage: | 208-230/460V |
| Full Load Amps: | 4/2 | Service Factor: | 1.15 | Motor Weight: | 48.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 14.28 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 85.5 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6206 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.8750 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1889.00 | ||||
