Baldor IDWNM22938T

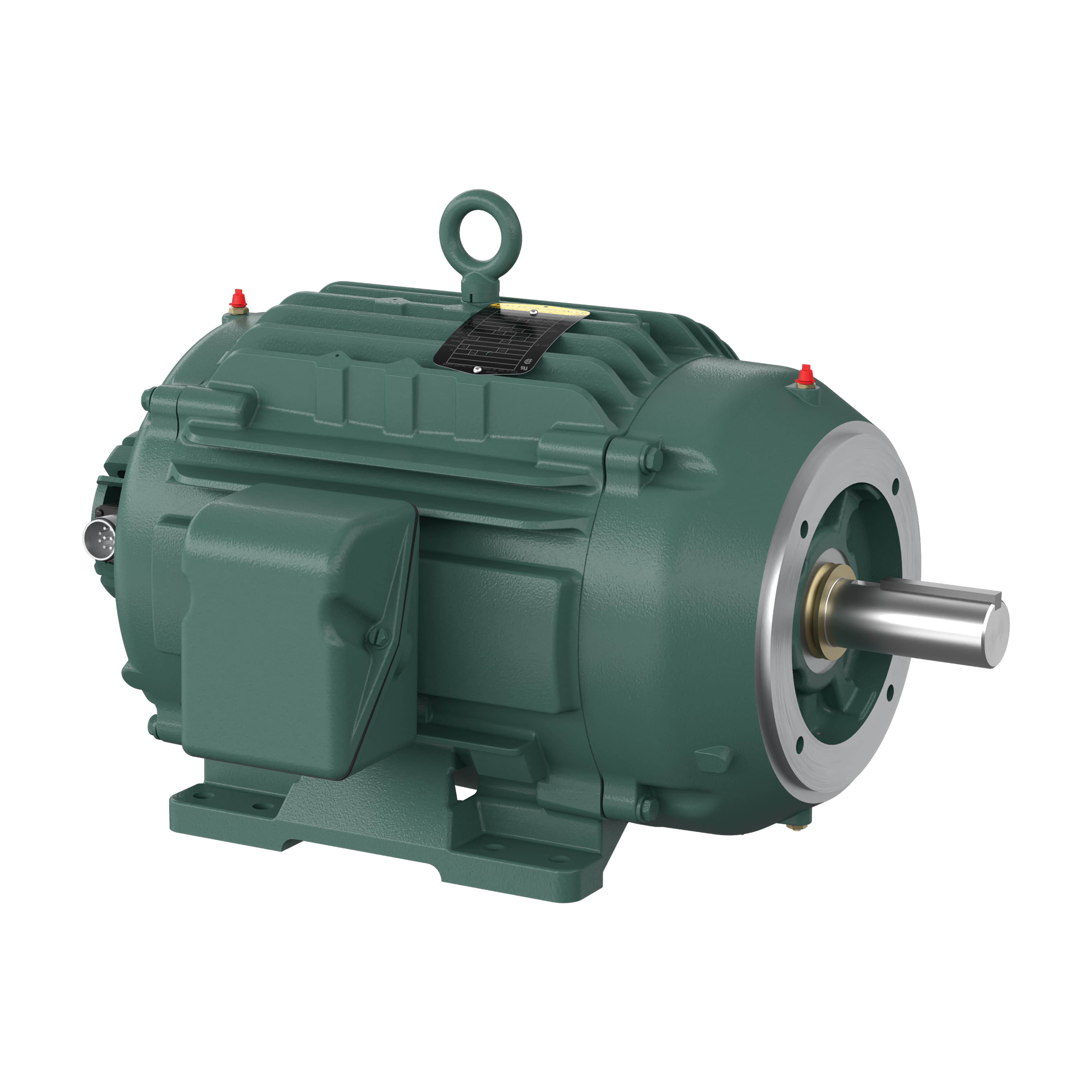

* Actual Product May Differ From Image
IDWNM22938T
Part Number: IDWNM22938T
Model/Spec Number: 781568202173
Manufacturer: Baldor
HP: 10
RPM: 1765
Frame:Steel
Frame Size:254TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
300 series stainless steel hardware, Neoprene gaskets, Double sealed ball bearings, Lip and V-ring seal on DE, White epoxy corrosion resistant finish, Stainless steel shaft extension, 3 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$4,668.41 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Packaging, Food Processing, Pumps, Wastewater, Wet environment | ||||
| Enclosure: | TENV | Frame Size: | 254TC | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 10 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1765 | Max Speed: | 5000 RPM |
| Base Speed: | 1800 RPM | Voltage: | 230/460V | Full Load Amps: | 24/12 |
| Service Factor: | 1.00 | Motor Weight: | 287.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 23.99 in | Frequency: | 60 Hz | Phase: | Three Phase |
| Efficiency: | 91.7 % | XP Temp Code: | Without | End Plate: | C-FACE |
| Bearing DE: | 6309 | Bearing ODE: | 6208 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.6250 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 6929.00 |
