Baldor EWDM3709T

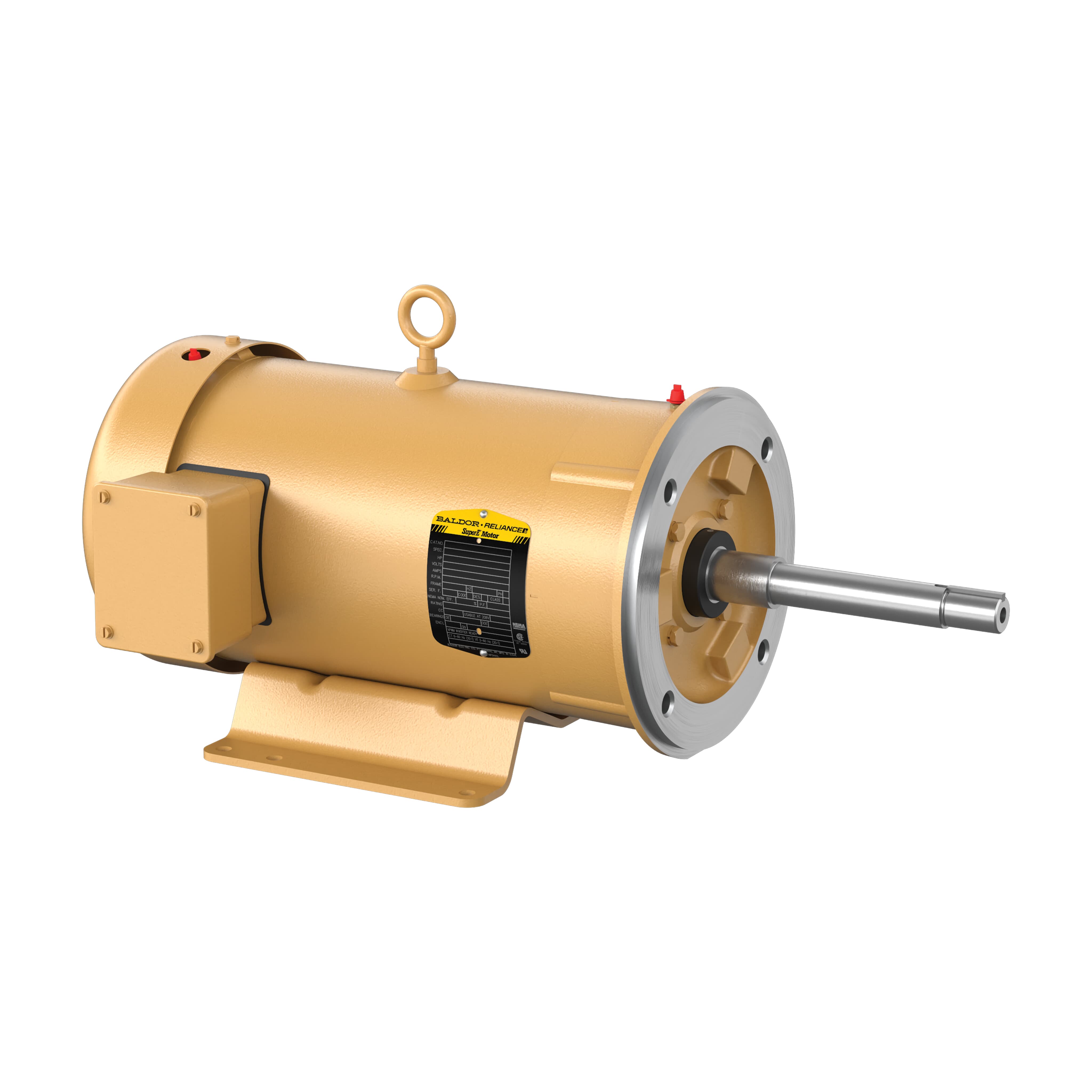

* Actual Product May Differ From Image
EWDM3709T
Part Number: EWDM3709T
Model/Spec Number: 781568931349
Manufacturer: Baldor
HP: 7 1/2
RPM: 3500
Frame:Steel
Frame Size:213T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
300 series stainless steel hardware, Neoprene gaskets, Double sealed ball bearings, Lip and V-ring seal on DE, White epoxy corrosion resistant finish, Stainless steel shaft extension, 3 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,793.37 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Packaging, Food Processing, Pumps, Wastewater, Wet environment | ||||
| Enclosure: | TEFC | Frame Size: | 213T | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 7 1/2 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3500 | Voltage: | 230/460V |
| Full Load Amps: | 18/9 | Service Factor: | 1.15 | Motor Weight: | 129.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 17.89 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 89.5 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6307 | Bearing ODE: | 6206 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.3750 in | Inverter Duty: | Inverter Duty |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 4146.00 | ||||
