Baldor GNEM2528T-G
* Actual Product May Differ From Image
GNEM2528T-G
Part Number: GNEM2528T-G
Model/Spec Number: 781568586129
Manufacturer: Baldor
HP: 15//20 kW/Hp
RPM: 1180//980
Frame:Steel
Frame Size:286T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
50/60 Hz Design, Designed for longevity with 3 year warranty, Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$5,899.36 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

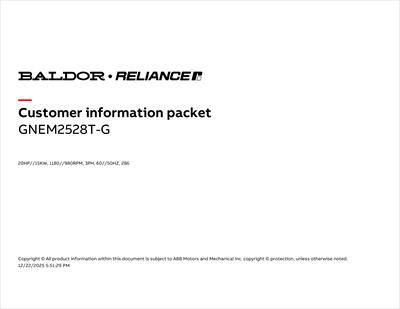

Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Air Handling, HVAC Systems, General Purpose Applications | ||||
| Enclosure: | OPSB | Frame Size: | 286T | Agency Approvals: | CE;CURUSEEV;IE3;NEMA_PREMIUM;UKCA;WEEE |
| Frame Material: | Steel | Poles: | 6 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 15//20 kW/Hp |
| Synchronous RPM: | 1000//1200 | Speed RPM: | 1180//980 | Voltage: | 190/380//208-230/460V |
| Full Load Amps: | 56-58/29//66/33 | Service Factor: | 1.15 | Motor Weight: | 375.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 26.06 in | Frequency: | 50;60 Hz |
| Phase: | Three Phase | Efficiency: | 92.4 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6311 | Bearing ODE: | 6309 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.8750 in | Shaft Grounding: | Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 8756.00 |
