Baldor ERM3009
* Actual Product May Differ From Image
ERM3009
Part Number: ERM3009
Model/Spec Number: 781568765647
Manufacturer: Baldor
HP: 1/2
RPM: 3450
Frame:Steel
Frame Size:48
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Resilient cushion base for low noise and reduced vibration, Terminal panel for ease of connectivity, Automatic thermal overload protection, Double shielded bearings
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$532.26 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

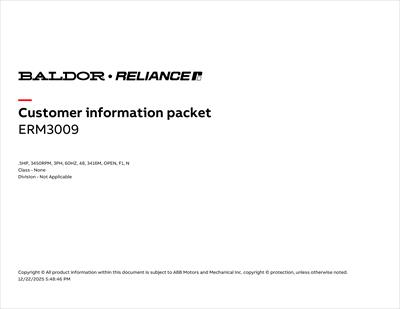

Documents
Product Specifications
| Applications: | Blowers, Fans, Condensers, Air handling, Pumps | ||||
| Enclosure: | ODP | Frame Size: | 48 | Agency Approvals: | CURUSEEV |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | B |
| Shaft Rotation: | Reversible | Base: | Resilient | Horsepower: | 1/2 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3450 | Voltage: | 230/460V |
| Full Load Amps: | 1.6/.8 | Service Factor: | 1.25 | Motor Weight: | 24.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 10.34 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 73.4 % | XP Temp Code: | Without |
| End Plate: | RESILIENT MOUNT | Bearing DE: | 6203 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.5000 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 790.00 | ||||
