Baldor VPECP84310T-4
* Actual Product May Differ From Image
VPECP84310T-4
Part Number: VPECP84310T-4
Model/Spec Number: 781568910726
Manufacturer: Baldor
HP: 60
RPM: 3560
Frame:Iron
Frame Size:364VP
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Meets/Exceeds the requirements of IEEE Std 841-2021, Vertical lifting provisions for ease of installations, Severe duty construction for harsh environments, Inpro/seals at drive end and opposite drive end, Inverter duty nameplate, 5 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$20,810.79 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

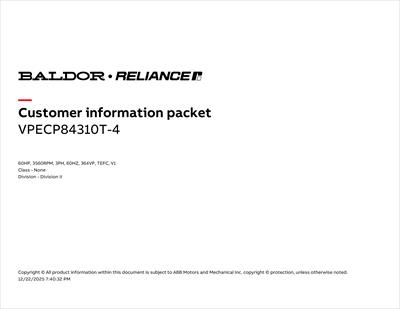

Documents
Product Specifications
| Applications: | Aggregate, Harsh environments, High thrust applications, Petrochemical, Pulp, Paper, Wastewater | ||||
| Enclosure: | TEFC | Frame Size: | 364VP | Agency Approvals: | CCSA US;CCSAUSEEV;UR |
| Frame Material: | Iron | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 60 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3560 | Voltage: | 460V |
| Full Load Amps: | 66 | Service Factor: | 1.15 | Motor Weight: | 999.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 37.27 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 93.6 % | XP Temp Code: | T3 |
| End Plate: | P-BASE | Bearing DE: | 6313 | Bearing ODE: | 7310 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | IP56 | Standard: | NEMA |
| List: | 30888.00 | ||||
