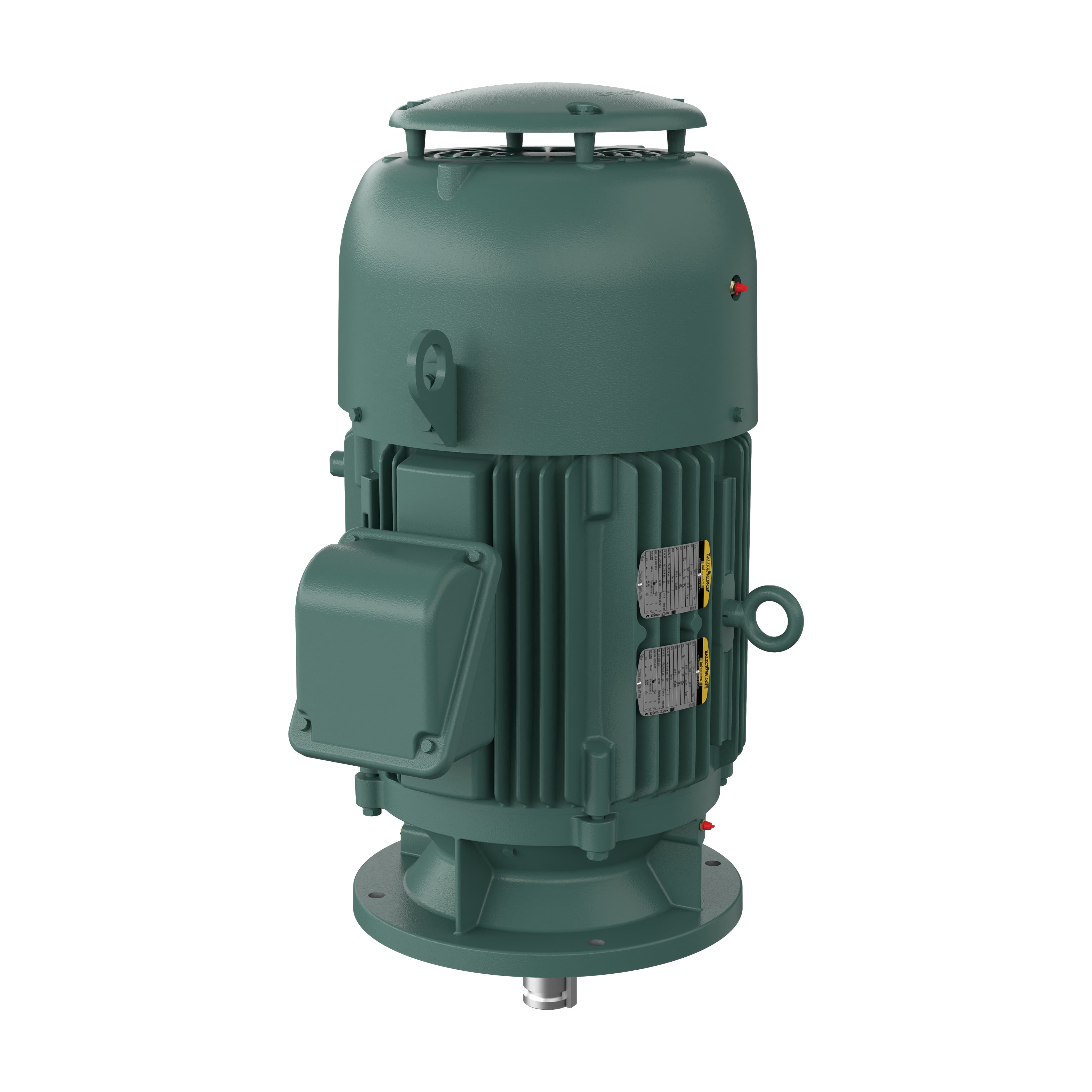

Baldor VLECP84107T-4
* Actual Product May Differ From Image
VLECP84107T-4
Part Number: VLECP84107T-4
Model/Spec Number: 781568910702
Manufacturer: Baldor
HP: 25
RPM: 3520
Frame:Iron
Frame Size:284LP
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Meets/Exceeds the requirements of IEEE Std 841-2021, Vertical lifting provisions for ease of installations, Severe duty construction for harsh environments, Inpro/seals at drive end and opposite drive end, Inverter duty nameplate, 5 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$9,883.91 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Aggregate, Harsh environments, High thrust applications, Petrochemical, Pulp, Paper, Wastewater | ||||
| Enclosure: | TEFC | Frame Size: | 284LP | Agency Approvals: | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 25 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3520 | Max Speed: | 5400 RPM |
| Voltage: | 460V | Full Load Amps: | 28 | Service Factor: | 1.15 |
| Motor Weight: | 396.0 lbs | Duty Cycle: | Continuous | Overall Length: | 36.31 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 91.7 % |
| XP Temp Code: | T3 | End Plate: | P-BASE | Bearing DE: | 6213 |
| Bearing ODE: | 7309 | Ambient Temp: | 40 °C | Shaft Diameter: | 2.1250 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | IP56 |
| Standard: | NEMA | List: | 14670.00 | ||
