Baldor ECP4419T-4
* Actual Product May Differ From Image
ECP4419T-4
Part Number: ECP4419T-4
Model/Spec Number: 781568726150
Manufacturer: Baldor
HP: 75
RPM: 890
Frame:Iron
Frame Size:444T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Regreasable bearings all frames, 304 Stainless steel nameplates, Inverter Duty nameplate, Division 2/Class 1 Groups A-B-C-D markings on nameplate, Insulated NDE bearing on 5000 frames, Class F insulated motor with 1.15 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$26,765.46 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

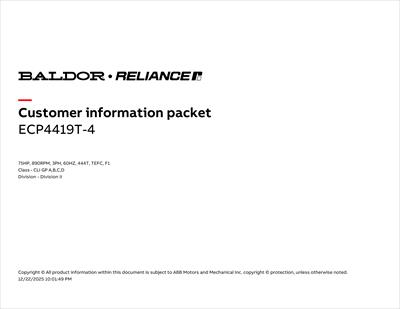

Documents
Product Specifications
| Applications: | Power Generation, Metal & Foundries, Chemical, Oil, Gas, Food Processing, Pulp, Paper, Forest production, Wastewater treatment, Cement | ||||
| Enclosure: | TEFC | Frame Size: | 444T | Agency Approvals: | CCSAUSEEV |
| Frame Material: | Iron | Poles: | 8 | Insulation Class: | B |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 75 Hp |
| Synchronous RPM: | 900 | Speed RPM: | 890 | Voltage: | 460V |
| Full Load Amps: | 89.3 | Service Factor: | 1.15 | Motor Weight: | 1932.9990 lbs |
| Duty Cycle: | Continuous | Overall Length: | 44.75 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 94.5 % | XP Temp Code: | T3 |
| End Plate: | STANDARD | Bearing DE: | 6318 | Bearing ODE: | 6318 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 3.3750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 37898.00 | ||||
