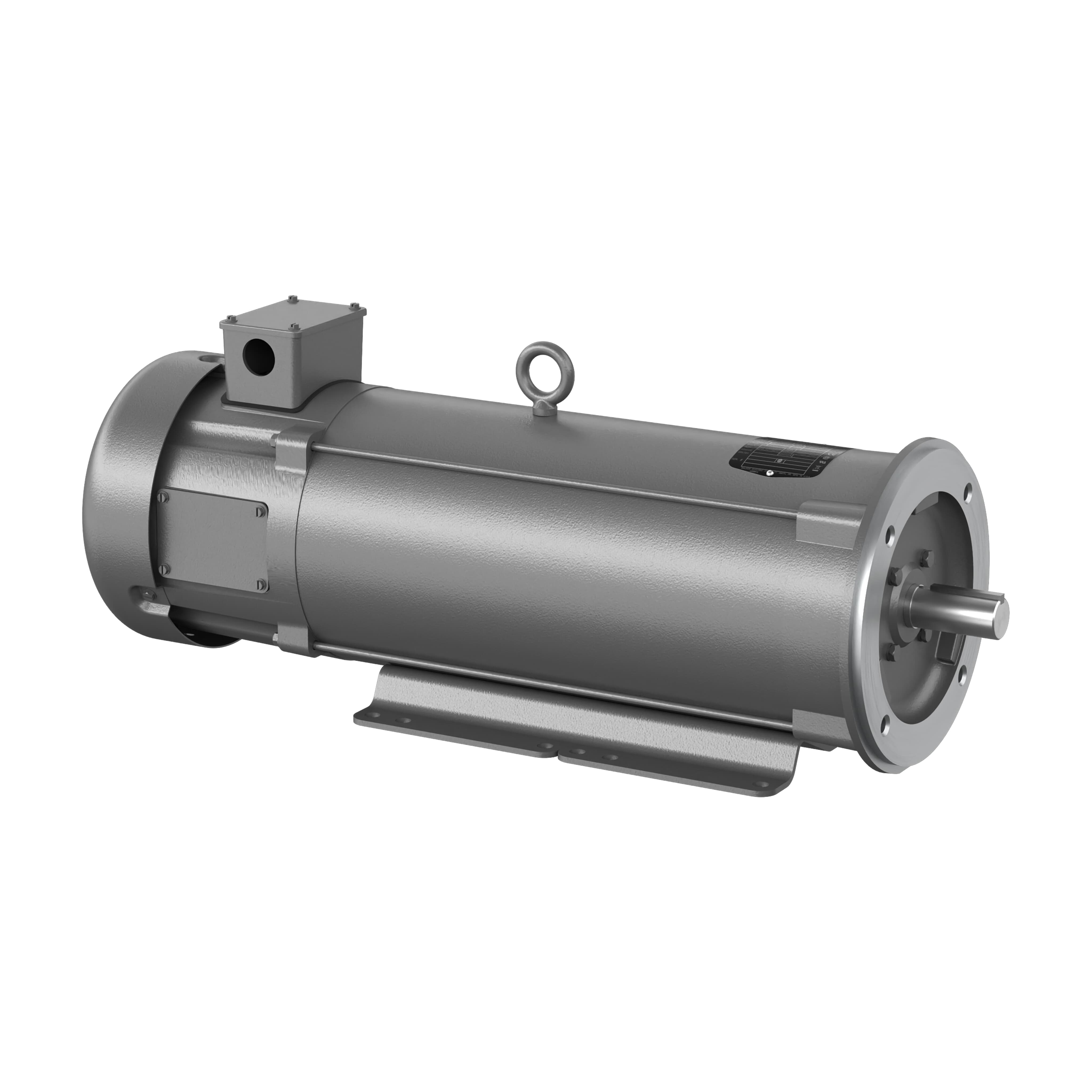

Baldor CDPWD3605
* Actual Product May Differ From Image
CDPWD3605
Part Number: CDPWD3605
Model/Spec Number: 781568133910
Manufacturer: Baldor
HP: 5
Frame:Steel
Frame Size:1810ATC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
NEMA C-Face with removable base, Tachometer adaptable, Class F insulation, Double sealed bearings, 20:1 constant torque, UL and CSA recognized
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$8,894.17 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Conveyors, Mixers, Packaging Machinery | ||||
| Enclosure: | TEFC | Frame Size: | 1810ATC | Agency Approvals: | CE;CSA;UR;WEEE |
| Frame Material: | Steel | Insulation Class: | F | Shaft Rotation: | Reversible |
| Base: | Rigid | Horsepower: | 5 Hp | Base Speed: | 1750 RPM |
| Armature Current: | 24.5000 | Service Factor: | 1.00 | Motor Weight: | 157.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 27.83 in | XP Temp Code: | Without |
| Bearing DE: | 6206 | Bearing ODE: | 6206 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.1250 in | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 13201.00 | ||
